REL S/550
$4,550

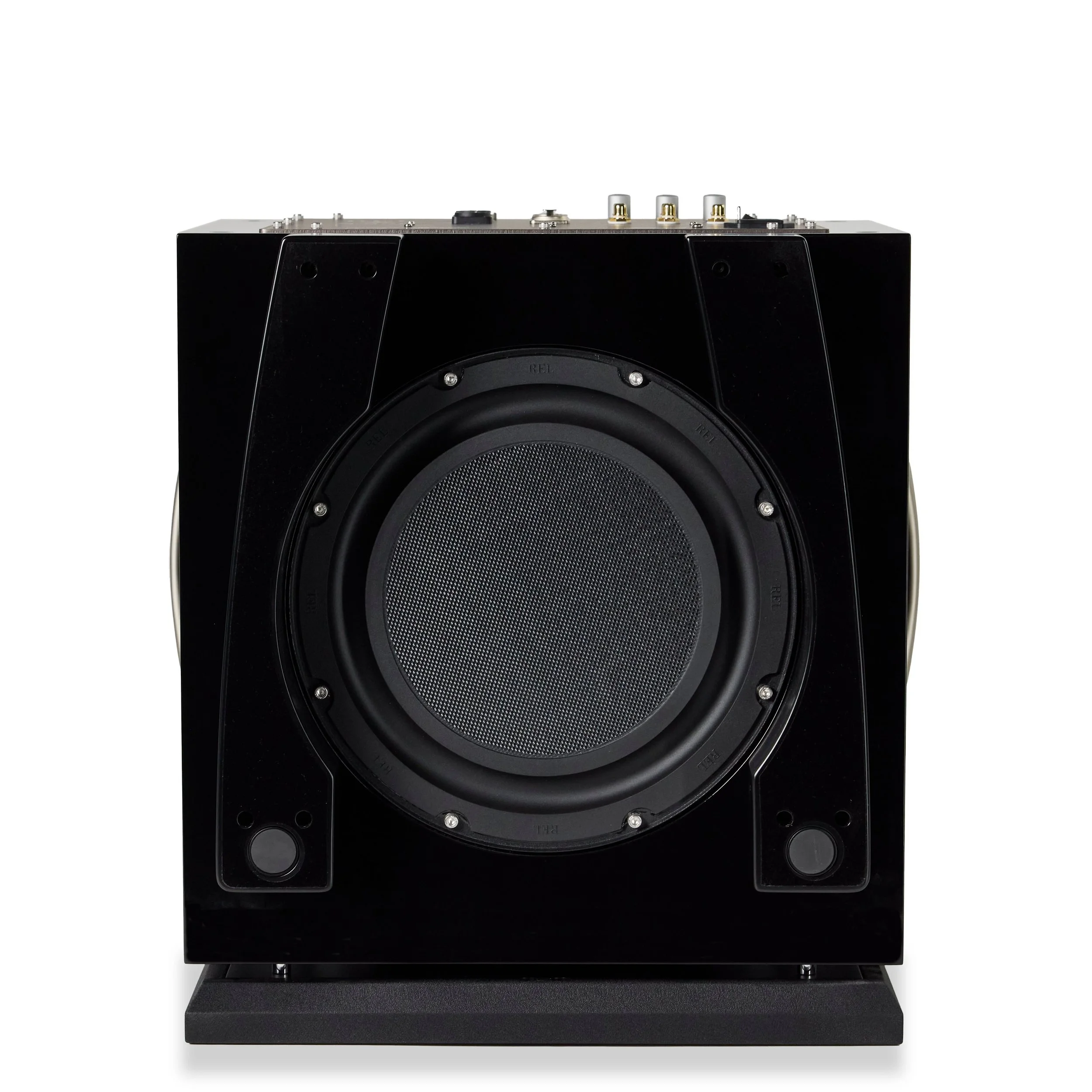

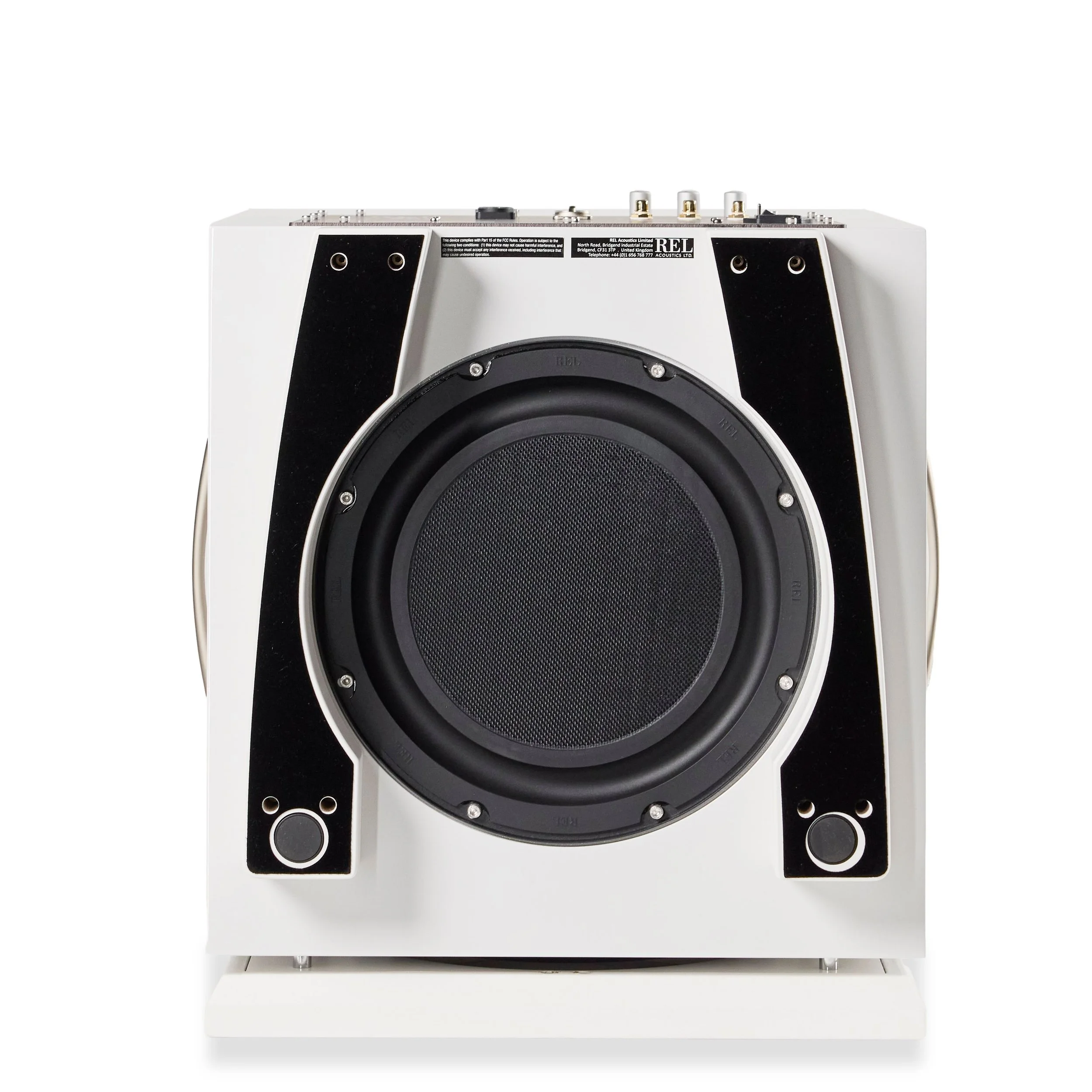

Powered by a 550 watt Pure Class D amplifier, this subwoofer features a 10” forward-facing Carbon Alloy active driver and a 12” downward-facing passive radiator.
Buy today! Currently in stock (black).
Available to audition in the Creative Audio showroom.
Creative Audio is Winnipeg’s authorised REL dealer.
Image Gallery
In Depth

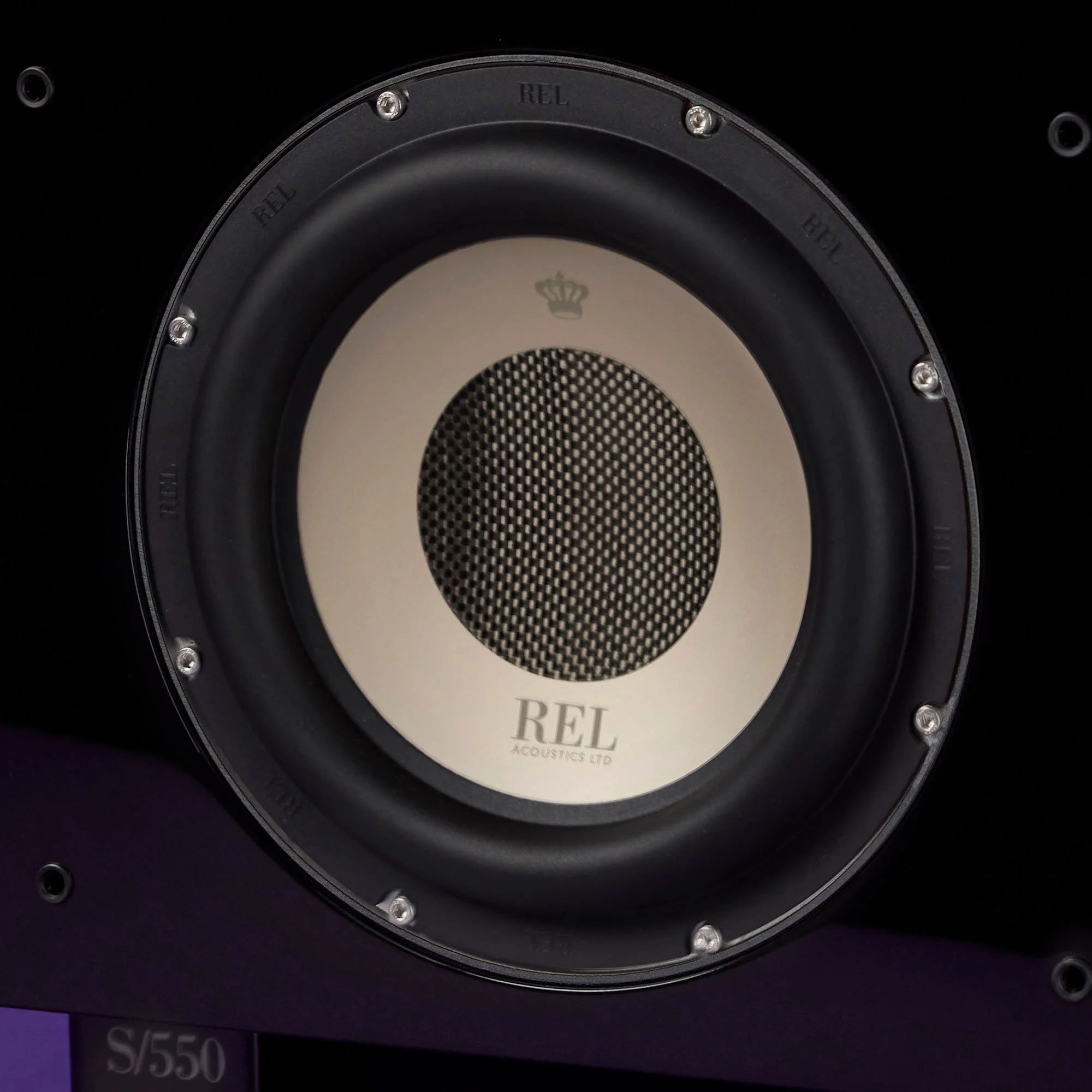

Driver for speed
The new Serie S models deliver faster speed, with greater dynamic attack and fine resolution. This has been achieved in large part through the advances made in the main driver which is now lighter and more supple. A redesigned suspension allows the driver to travel further and reach deeper to resolve details in the lowest frequencies. The passive downward-firing driver has also been improved and is now 40% stiffer and lighter, extending the capabilities of the main active driver.
Amplifier for accuracy
Not only are the new Class D amplifiers in the REL Serie S subwoofers more powerful, they are also more transparent and faithful to the musical signal, using premium polypropylene capacitors like those used in the high-end Reference series models. REL also uses a 100% analog filter system - a choice they have made once again for the ultimate goal of a truly natural sound.
Creative Audio Pro Tips
Care taken in positioning and adjusting the REL S/550 will pay massive dividends in its performance. Fortunately we are here to help you with the process.
If you are more of a DIY type, we strongly advise you take the time to read the instructions that accompany the REL S/550 subwoofer. REL subs are unlike any other sub on the market and it is important to heed their recommendations.
REL S/550 Technical Specifications
(reprinted from REL)
Type
Front-firing active driver, down-firing passive
Active Driver Size & Material
10 in. (250mm) long-throw, CarbonAlloy™ cone structure, die cast alloy chassis
Passive Radiator Size & Material
12 in. (305mm), Carbon/Carbon flat cone structure, steel chassis
Low Frequency Extension
-6 dB at 19Hz

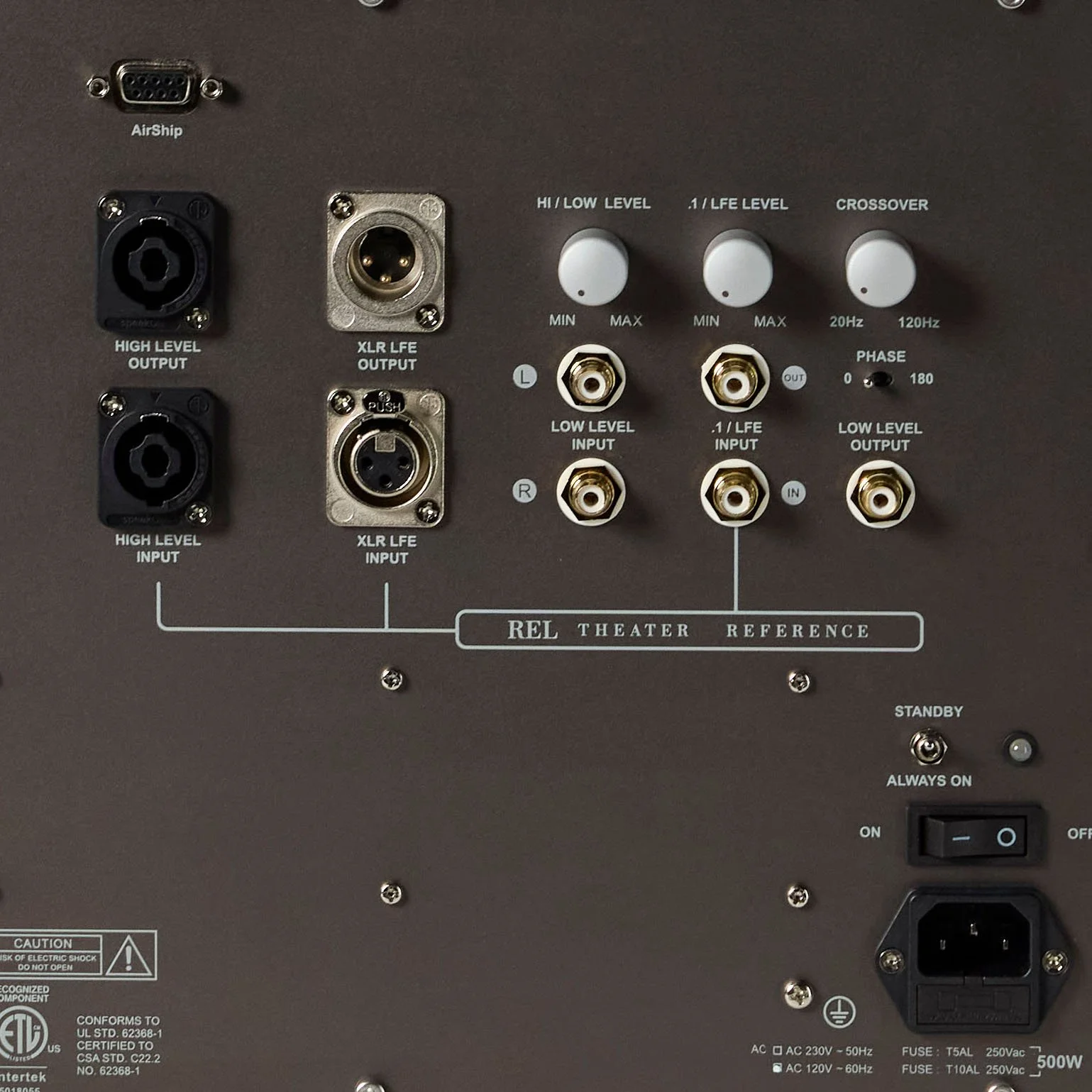

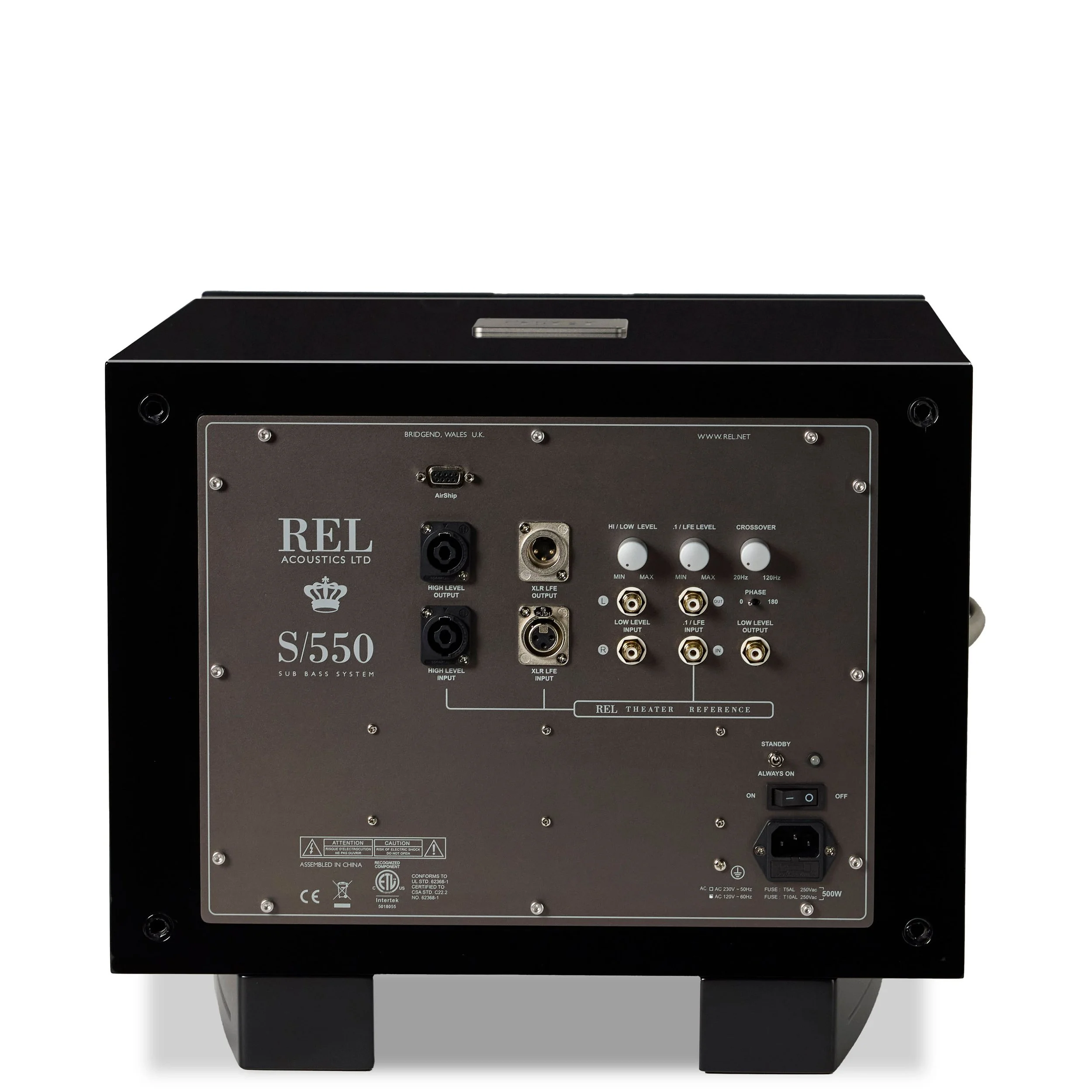

Input Connectors
High Level Neutrik Speakon, Low Level (2) RCA, (1) LFE RCA, (1) LFE XLR
Output Connectors
High Level Neutrik Speakon, (1) Low Level RCA, (1) LFE RCA or (1) LFE XLR
Power Output
550 watts (RMS)
Amplifier Type
Linear Class D
Wireless Capability
REL AirShip Direct (sold separately)
Dimensions (WxHxD)
17.5 x 14.75 x 19.75 in.
Weight
68 pounds
Finish Options (8 coat lacquer)
Black, White
