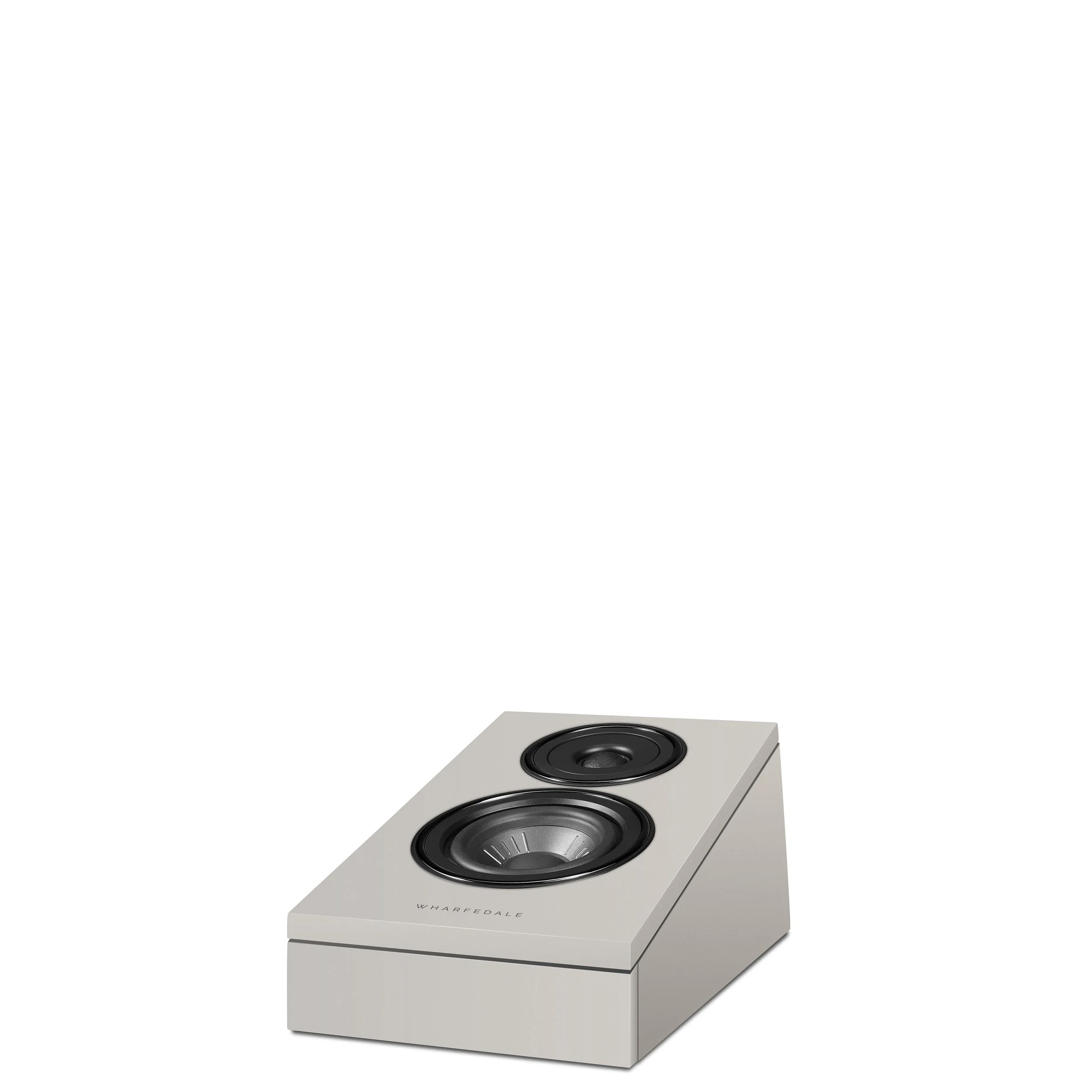

Wharfedale Diamond 12.3Di
$899 (pair)
A Dolby Atmos effects speaker designed to pair seamlessly with the Wharfedale Diamond 12.3i floorstanding speaker, it features a 4” main driver and a 1” soft textile dome tweeter.
Special order.
Creative Audio is an authorised Wharfedale dealer.
Image Gallery
Key Tech Specs
90 Hz
Low Frequency Extension
110 - 20,000 Hz
Frequency Response
8 Ohms
Impedance
The Wharfedale Diamond 12.3Di is a Dolby Atmos effects speaker with a low sensitivity of 82 dB. Combined with its 8 ohm impedance, and it’s less dominant presence in a surround sound system, this is not a difficult speaker to drive.
In Depth
Klarity Cone
Wharfedale’s special blend of polypropylene and mica forms the Klarity cone mid-bass drivers for the Diamond 12i series. This material is lightweight and well-damped, allowing it to deliver an uncoloured midrange and dynamic bass. Efficiency is aided through the use of a low-damped surround while the ribbed formations on the cone ensure a linear frequency response.
Soft Woven Textile Dome Tweeter
Detailed, natural high frequencies come courtesy of Wharfedale’s woven polyester dome tweeter design. Wide dispersion means a wide sweet spot so that everyone can enjoy the smooth, extended highs of this affordable hi-fi speaker series.
Creative Audio Pro Tips
The Wharfedale Diamond 12.3Di will sound great right out of the box, but will sound even better after 100 hours of use.
We always recommend a quality speaker cable to connect your speakers.
Wharfedale Diamond 12.3Di Technical Specifications
Design:
2-way Dolby Atmos effects speaker
Enclosure Type:
Sealed
Drivers:
1x 4” advanced PP cone mid/bass
1” soft textile dome tweeter
Impedance (Nominal):
8 ohms
Impedance (Minimal):
4.3 ohms
Sensitivity:
82 dB
Recommended Power:
20-100 watts
Frequency Response:
110 - 20,000 Hz (+/- 3 dB)
Bass Extension (-6 dB):
90 Hz
Crossover Frequency:
3 kHz
Speaker Dimensions (HxWxD):
5.7” x 7.1” x 12.2”
Weight:
7 pounds (each)
Finish options:

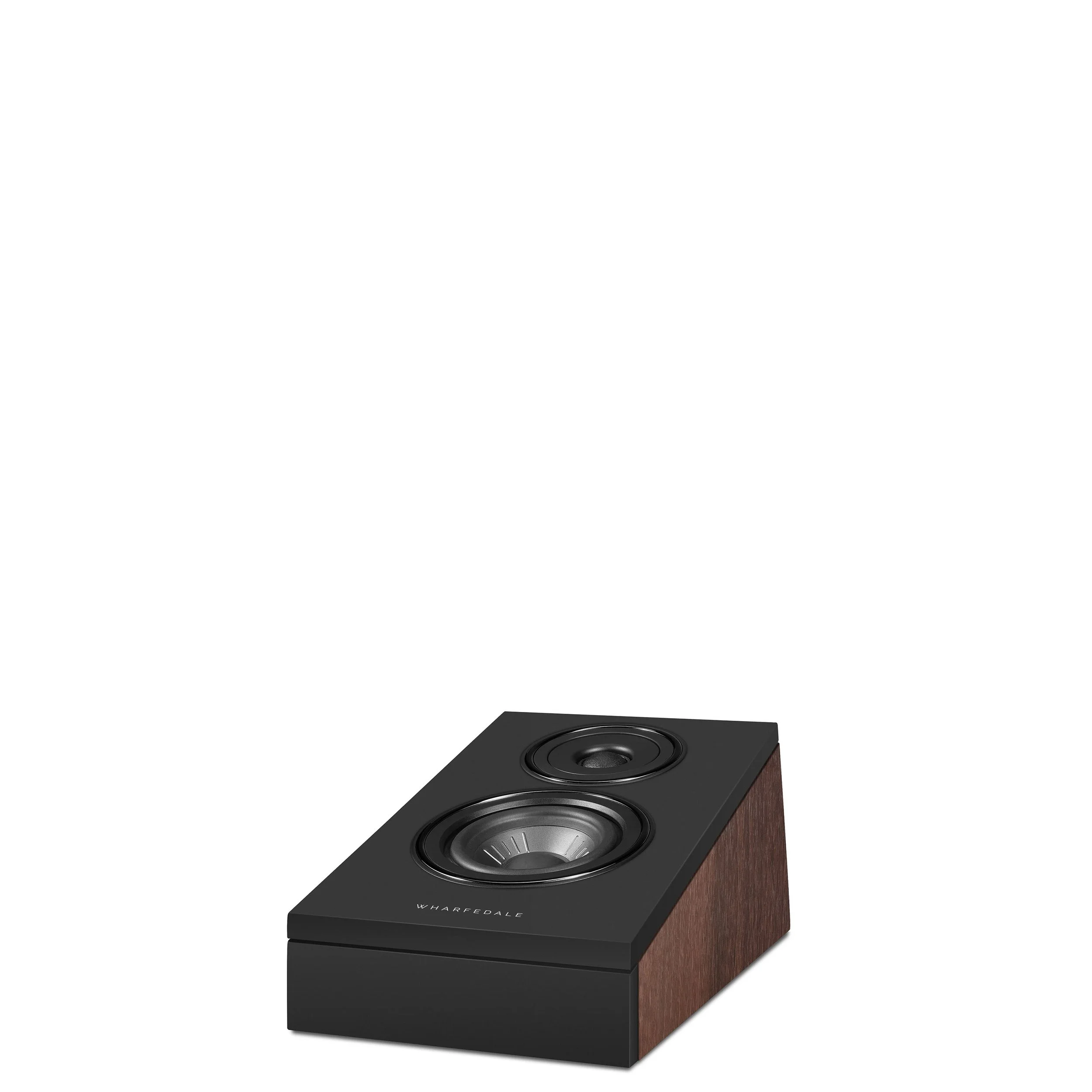

Black, Classic Walnut, Stone Grey
