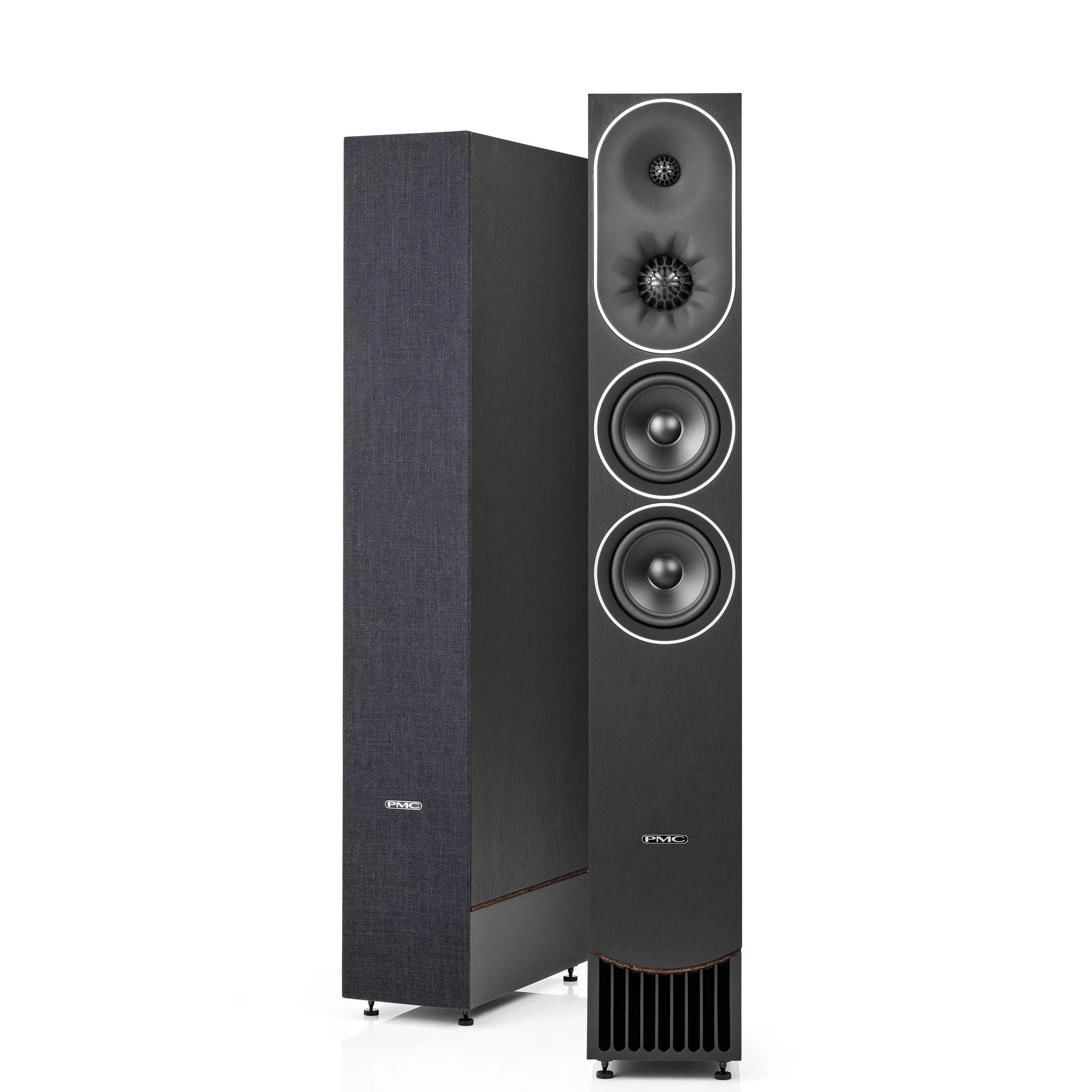

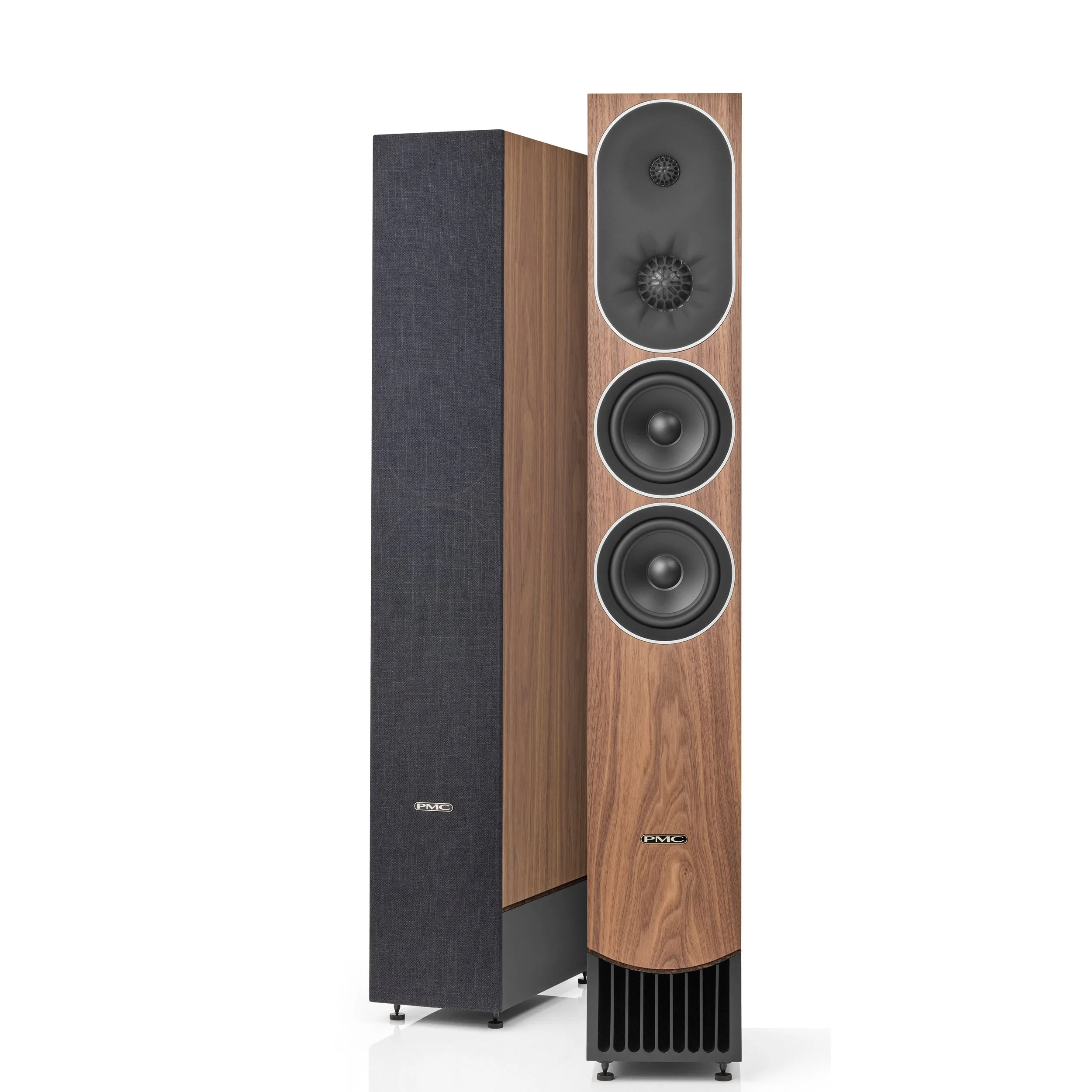

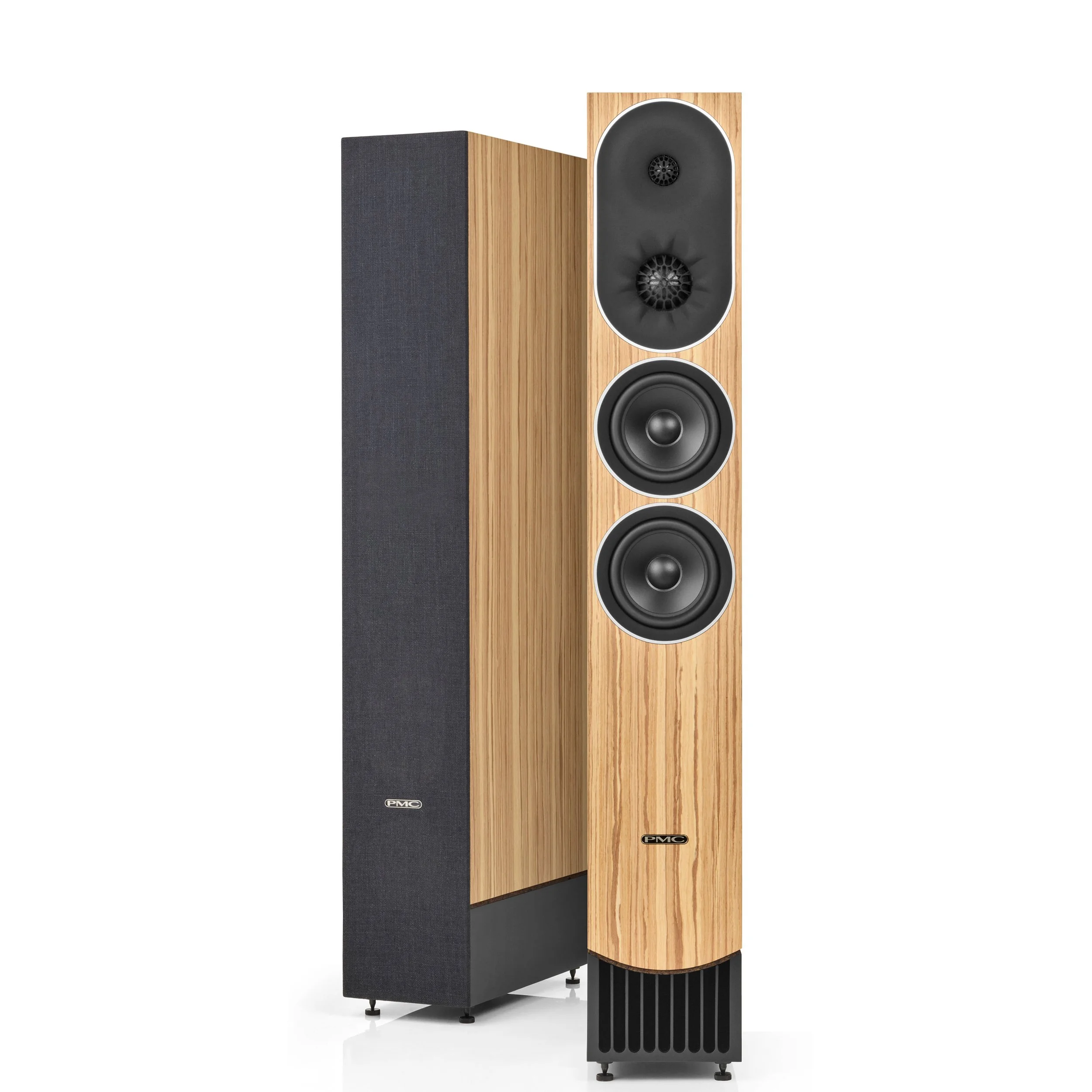

PMC prophecy9
$15,999 (pair)
The flagship of the PMC prophecy series, this three-way floorstanding speaker delivers astonish bass depth and dynamics for such a slender design thanks to PMC’s Advanced Transmission Line bass loading.
Key Features:
5” long-throw woofer (x2)
2” soft dome midrange
1” soft dome tweeter
Available to order.
Creative Audio is Winnipeg’s authorized PMC dealer.
Image Gallery
“This is an uncannily neutral and low colouration loudspeaker, one that does not attempt to make the music it produces sound warm, fast, sweet or powerful but aims to render it exactly as it sounded in the studio or concert hall.”
Technology

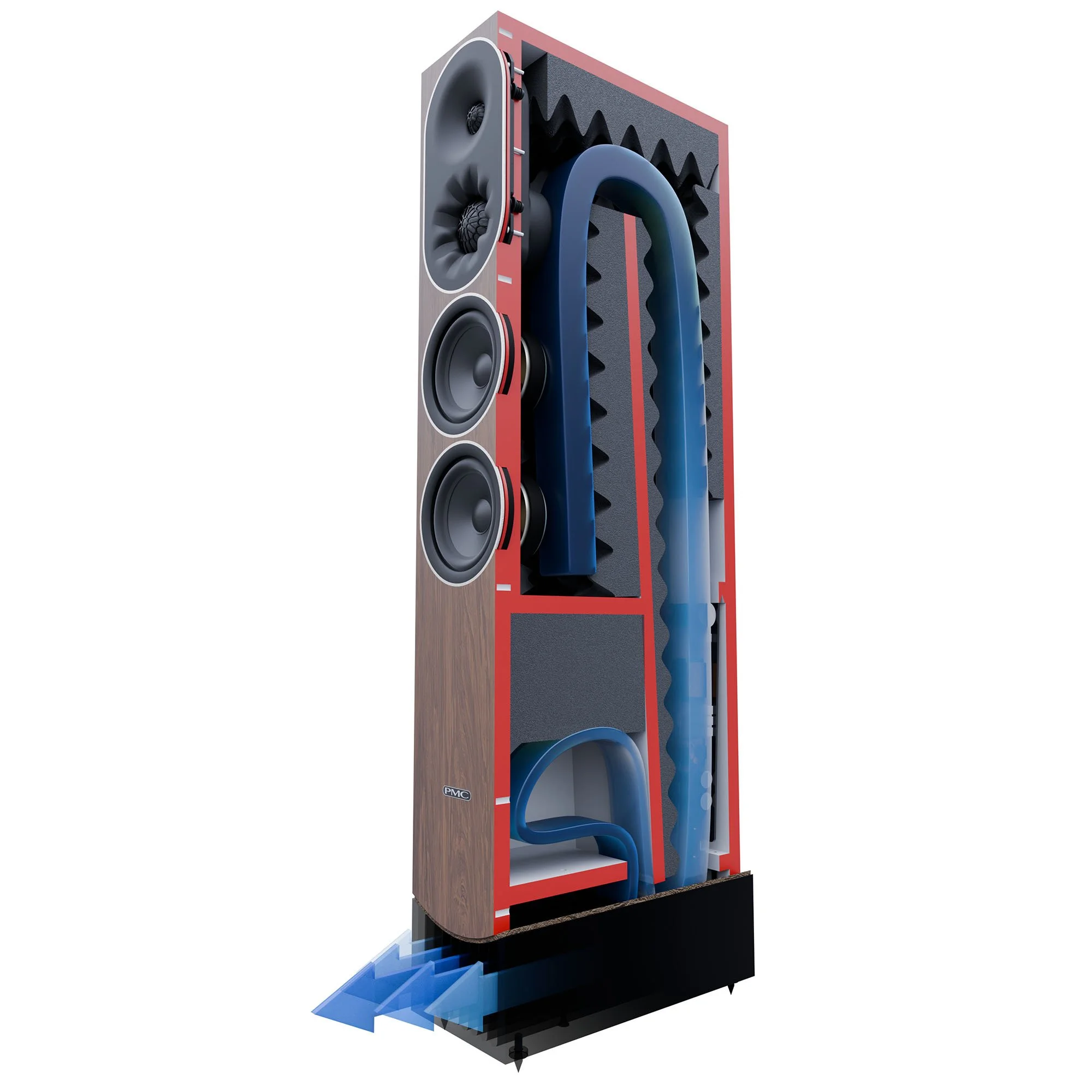

Where most speakers use a simple cylindrical port to augment bass depth, PMC takes a far more elaborate approach. Their Advanced Transmission Line technology delivers superior low-frequency depth and linearity, at all volume levels. With this design, behind the woofer is a long, highly damped tunnel. In the case of the prophecy9, this tunnel has an effective level of over 8 feet. Absorbing unwanted mid- and high-frequency energy that radiates from the back of the driver, the transmission line allows only the lowest frequencies to exit the cabinet in phase with the forward movement of the woofer. The end result is shockingly deep - and defined - bass from such a compact speaker. ATL has another advantage: its construction allows for an inherently stiffer cabinet which means less unwanted resonances, especially in the critical midrange frequencies. Less unwanted vibrations means more of the good vibrations we want: music!
Creative Audio Pro Tips
The PMC prophecy9 will sound great right out of the box, but will sound even better after 200 hours of use.
For best results, experiment with positioning of the speakers relative to the wall behind them. In most case we would expect the best results with a distance of between 18 and 36 inches from the back of the speaker to the wall behind them.
PMC prophecy9 Technical Specifications
(reprinted from PMC)
Frequency Response:
35Hz – 20kHz (-3dB)
Sensitivity:
91.5dB SPL 1W 1m
Recommended Amp Power:
30 - 300 watts
Effective ATL™ Length:
8.4 feet
Impedance:
4 Ohm
Drive Units:
Woofer: 2x PMC 5”/125mm LTXL mineral cone with cast alloy chassis
Midrange: PMC 2”/55mm soft dome precision midrange
Tweeter: PMC 1”/27mm soft dome
Crossover Frequencies:
600 Hz, 3.2 kHz
Input Connectors:
One pair 4mm binding posts finished in satin nickel
Dimensions (HxWxD):
40.5” (+20mm with spikes) x 6.5” x 14.2” (+ 23mm terminals and +10mm grille)
Weight:
62 pounds each
Available Colours:
Mediterranean oak, Natural walnut, Blackened walnut
