PMC prophecy1
$4,999 (pair)
The scale and depth of sound from this compact bookshelf speaker will amaze and delight. Featuring PMC’s unique Advanced Transmission Line bass loading.
Key Features:
5” long-throw woofer
1” soft dome tweeter
6 ohm impedance
Available to order.
Creative Audio is Winnipeg’s authorized PMC dealer.
Image Gallery
“...we are hugely impressed by the prophecy1 speakers. They tick all the boxes for us, from an excellent all-round sound and thoughtful engineering to class-leading build.”
Technology

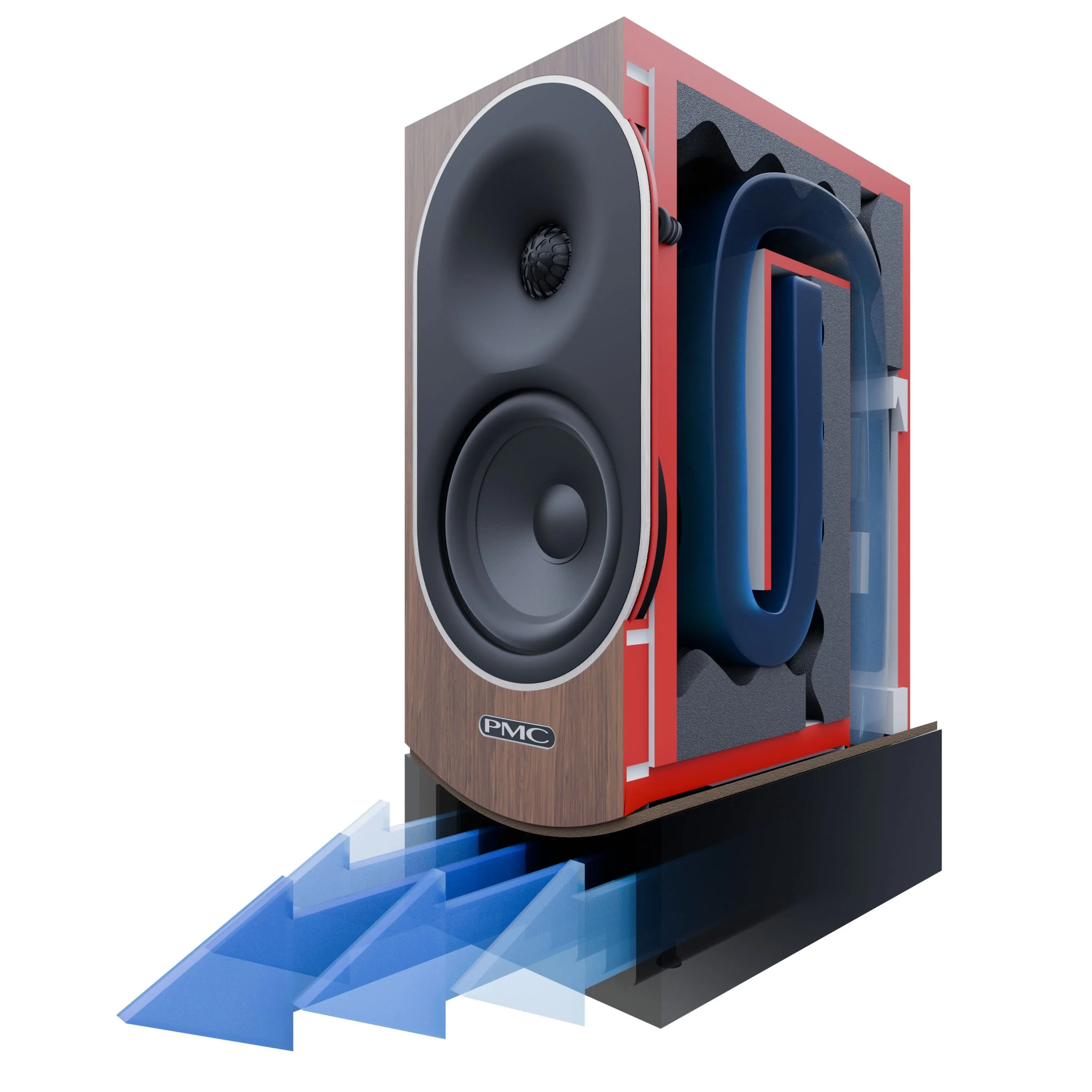

Where most speakers use a simple cylindrical port to augment bass depth, PMC takes a far more elaborate approach. Their Advanced Transmission Line technology delivers superior low-frequency depth and linearity, at all volume levels. With this design, behind the woofer is a long, highly damped tunnel. In the case of the prophecy1, this tunnel has an effective level of just under 6 feet. Absorbing unwanted mid- and high-frequency energy that radiates from the back of the driver, the transmission line allows only the lowest frequencies to exit the cabinet in phase with the forward movement of the woofer. The end result is shockingly deep - and defined - bass from such a compact speaker. ATL has another advantage: its construction allows for an inherently stiffer cabinet which means less unwanted resonances, especially in the critical midrange frequencies. Less unwanted vibrations means more of the good vibrations we want: music!
Creative Audio Pro Tips
The PMC prophecy1 will sound great right out of the box, but will sound even better after 200 hours of use.
For best results, experiment with positioning of the speakers relative to the wall behind them. In most case we would expect the best results with a distance of between 12 and 24 inches from the back of the speaker to the wall behind them.
PMC prophecy1 Technical Specifications
(reprinted from PMC)
Frequency Response:
50Hz – 20kHz (-3dB)
Sensitivity:
85dB SPL 1W 1m
Recommended Amp Power:
20 - 200 watts
Effective ATL™ Length:
5.8 feet
Impedance:
6 Ohm
Drive Units:
Woofer: PMC 5”/125mm LT XL mineral cone with cast alloy chassis
Tweeter: PMC 1”/27mm soft dome
Crossover Frequency:
1.5 kHz
Input Connectors:
One pair 4mm binding posts finished in satin nickel
Dimensions (HxWxD):
15.7” x 6.5” x 10.2” (+ 23mm terminals and +10mm grille)
Weight:
22.7 pounds each
Available Colours:
Mediterranean oak, Natural walnut, Blackened walnut
