Creative Audio and MartinLogan

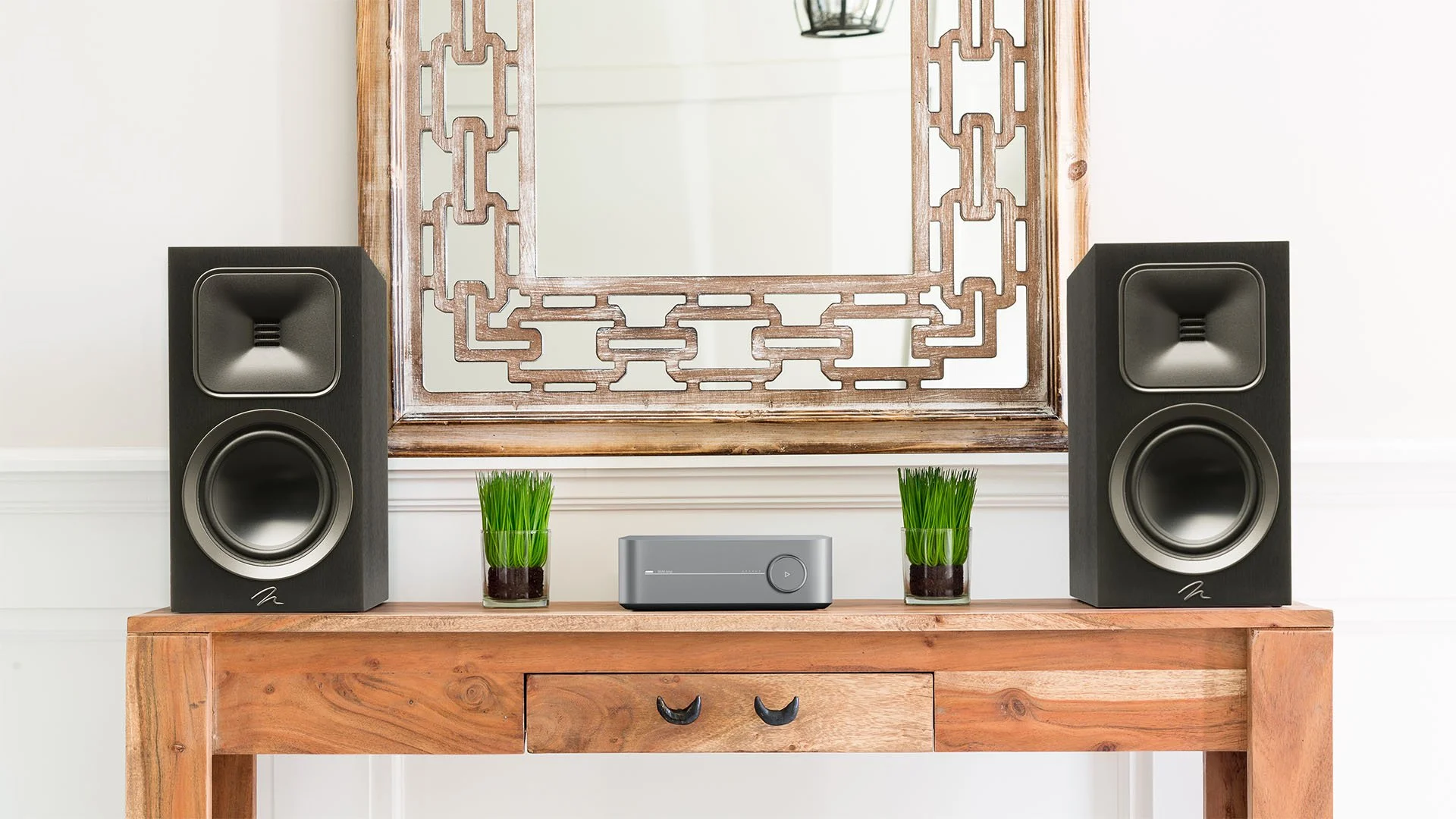

Our product catalogue brings an expertly curated selection of some of the world’s finest home audio brands to Winnipeg. MartinLogan has been a familiar name at Creative Audio for decades. We are well-versed in the history of the company and have the training required to educate you on their unique technologies. Whether your are shopping for your first pair of speakers or are looking for an upgrade, we would be happy to help you determine if the MartinLogan Motion Foundation B1 x Wiim Amp Bundle is the system for you.

• This model is normally kept in stock.

• Trades are considered.

Sound Advice

• The MartinLogan Motion Foundation B1 x Wiim Amp Bundle will sound great from the moment you start playing it, but it will sound even better after 50-75 hours of use, after the speakers and amplifier are broken in.

• For best results, we recommend a minimum distance of 6” from the back of the speaker to the wall behind.

MartinLogan Motion Foundation B1 x Wiim Amp Technical Specifications

(reprinted from MartinLogan)

Speakers

Design
2-way, ported (rear port)

Frequency Response
48 Hz - 23k Hz

Tweeter Dispersion
90° (vertical) x 90° (horizontal)

Sensitivity
89 dB

Impedance
5 ohms

Crossover Frequency
3400 Hz

High Frequency Driver
1" (vertical) x 0.94" (horizontal)

Mid-Bass Driver
5.5" (14cm) aluminum cone with cast aluminum basket. Non-resonant sealed chamber format. Unibody cone construction.

Recommended Power Range
15 - 100 watts

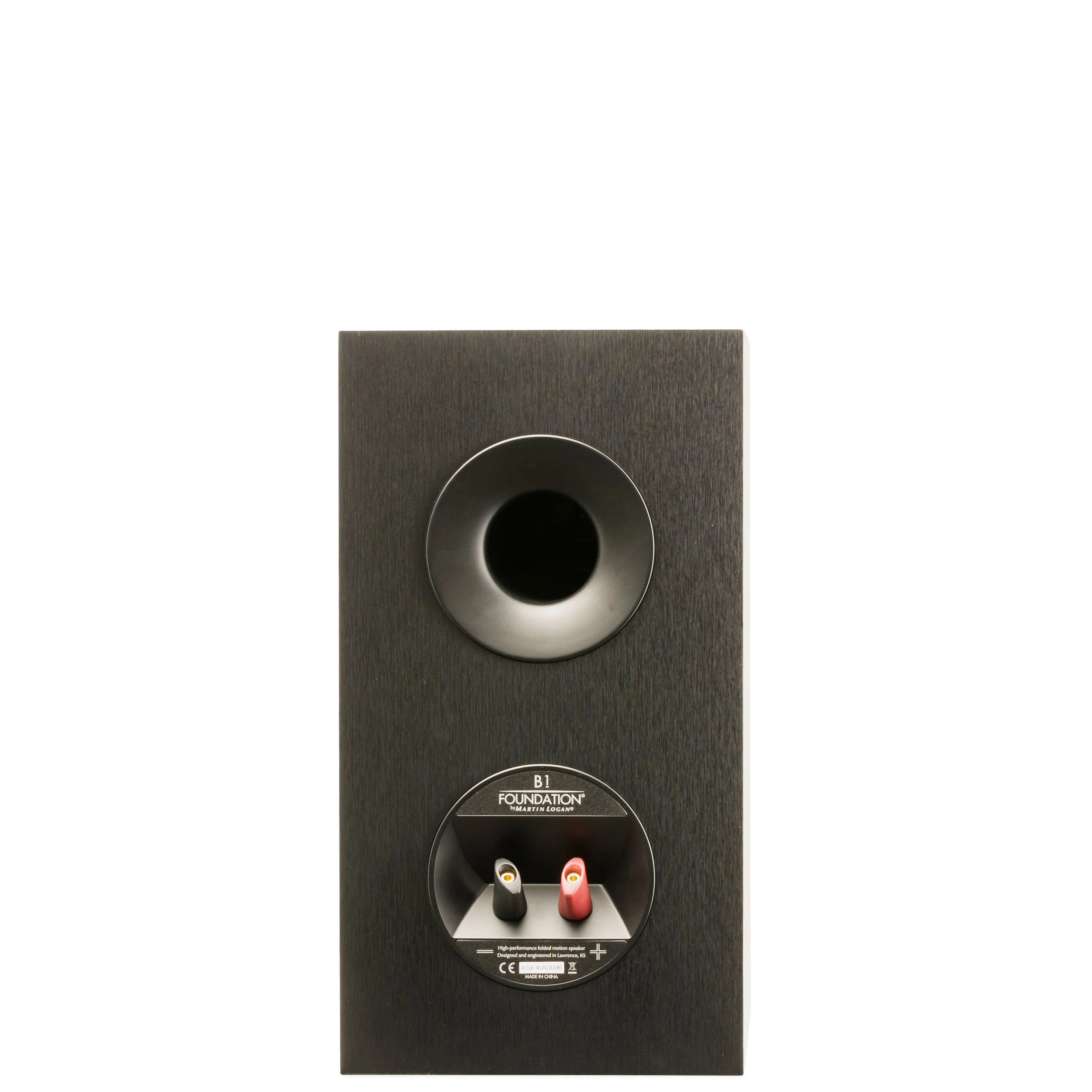

Binding Post Inputs
5-way Binding Posts (Non Bi-Wire)

Weight
11.5lbs / 5.2kg

Dimensions (HxWxD)
13.64" x 7.25" x 9.47"

Finish
Black

Amplifier

Controls
Volume knob, play/pause, and more

LED
Status, Volume

Power
60 Watts/channel at 8 ohms
120 Watts/channel at 4 ohms

Speaker Output
8 ohms, 6 ohms, 4 ohms
2 pairs 8 ohms in parallel
Minimum lndepedance 2.67 ohms

Home Theatre Audio Formats
Stereo PCM (Dolby Digital and DTS are not supported)

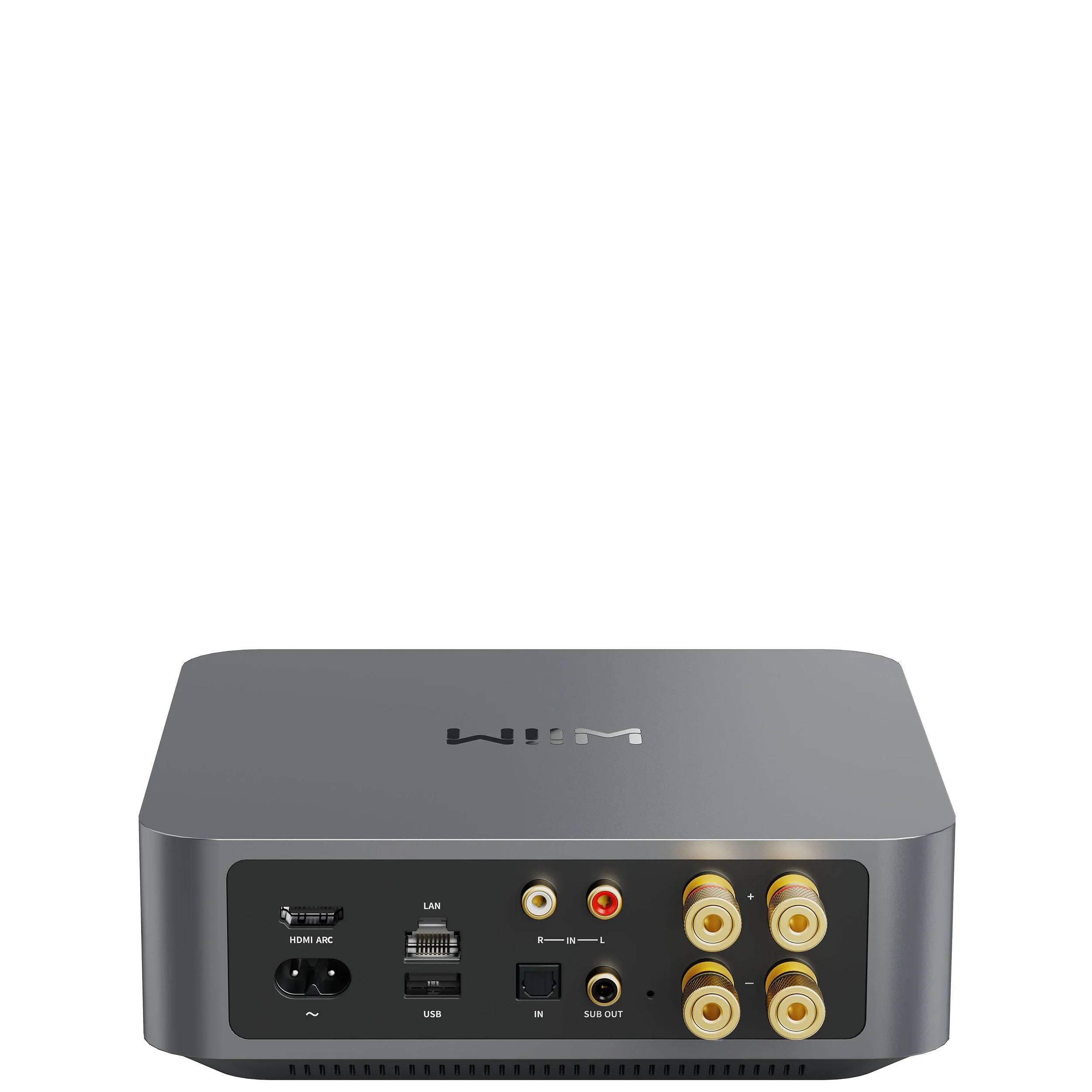

Audio Input
HDMI Arc, Optical, Line, USB Disk

Audio Output
Speaker Terminal
Subwoofer Output
USB Audio Out

Audio Output Quality
SNR - 98 dB
THD+N - 0.0025% (-92 dB)

Audio Format
MP3, AAC, ALAC, APE, FLAC, AIFF, WAV, WMA, OGG

EQ
10-band Graphic EQ, 10-band
Parametric EQ, 26 Preset EQ

Subwoofer Output
Auto-detecting cable insert, user-adjustable 30-250 Hz crossover

Power Supply
100-240V 50/60Hz AC Power

Network
2.4 Ghz, 5 GHz dual bands, 10/100 Mbps LAN

Bluetooth
BT 5.1
A2DP Sink and Source, AVRCP
BLE HID

Weight
1.84 kg (4.1 lbs)

Dimensions (HxWxD)
2.52" x 7.48" x 8.54"

What’s Included
Speakers, amplifier, speaker cable, USB cable, stereo analog audio cable, optical digital audio cable
