Luxman L-509Z
$18,995
The pinnacle of Luxman integrated amplifier design. Built in Japan, this all-analog amplifier delivers 120 watts per channel. Includes MM and MC phono inputs as well as bass, mid, and treble controls allowing you to tailor the sound to your taste.
Buy today! Currently in stock.
Available to audition in the Creative Audio showroom.
One of our most popular models!
Creative Audio is Winnipeg’s authorized Luxman dealer.
Image Gallery
In the Press
“What we have here is a high-end integrated amplifier that ticks all the boxes. If you are lucky enough to buy at this level, the Luxman L-509Z deserves a high place on your shortlist.”
Experience the Luxman L-509Z in person
The Luxman L-509Z is on display and available for your personal audition in the Creative Audio showroom in Winnipeg. Tap the button below to contact us and book your appointment today. We look forward to seeing you!
Design
If you’re of a certain age, the Luxman L-509Z looks like the quintessential amplifier. The soft satin silver finish of the precision machined metal front panel is the perfect backdrop for vintage design cues:

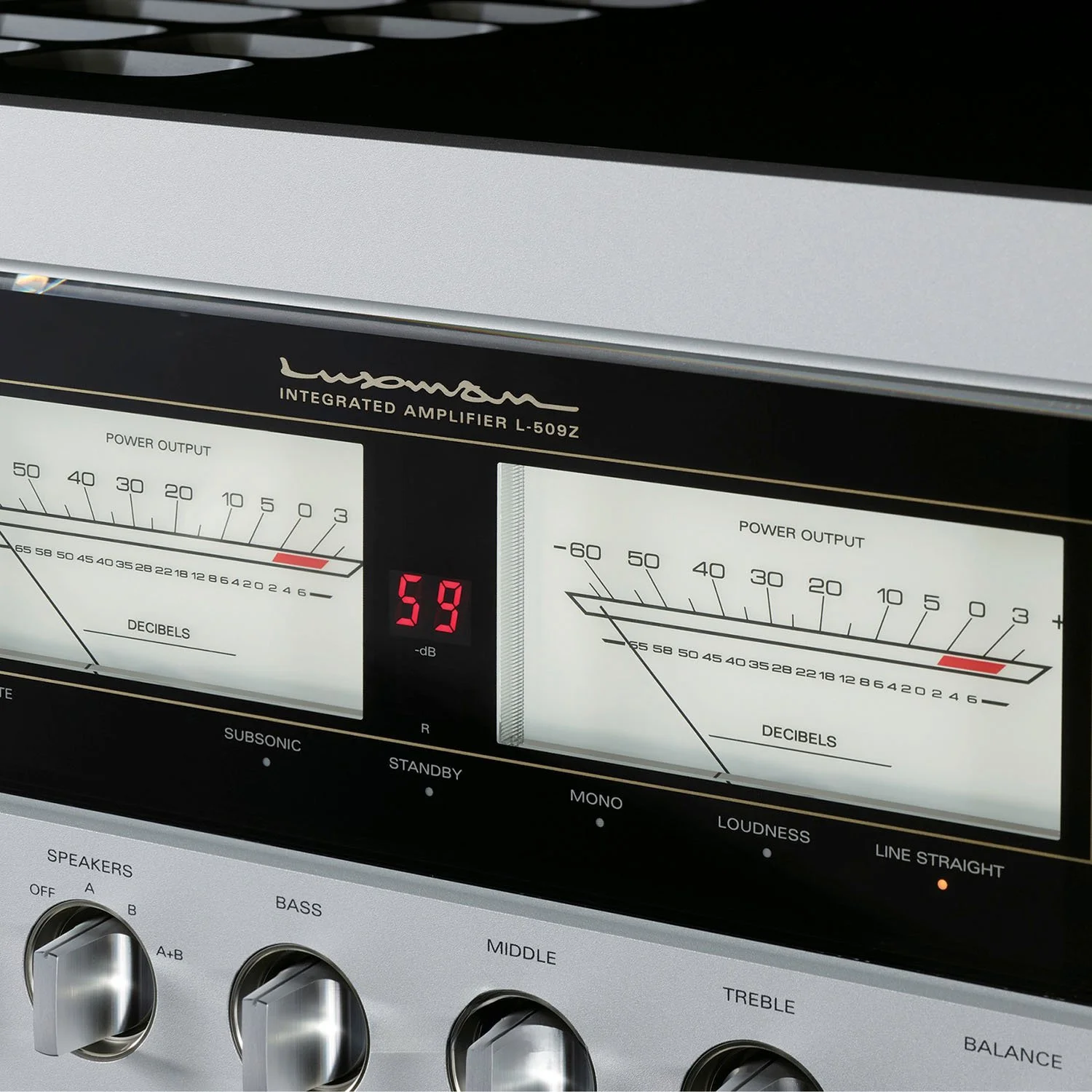

Large backlit VU meters
Rotary tone and adjustment controls
Large rotary volume and source controls
As you would expect from a precision Japanese-made instrument, the fit and finish of the Luxman L-509Z is second to none. This is quality you can feel, in the fluid movement of the rotary controls and the solidity of the control buttons. The build serves the purpose too, minimizing internal vibration of circuits which would negatively affect the integrity of the musical signal.
Technology
It may look vintage on the outside, but inside the L-509Z is filled with Luxman’s latest advances in amplifier technology. Fanatical attention is paid to the entire signal path:

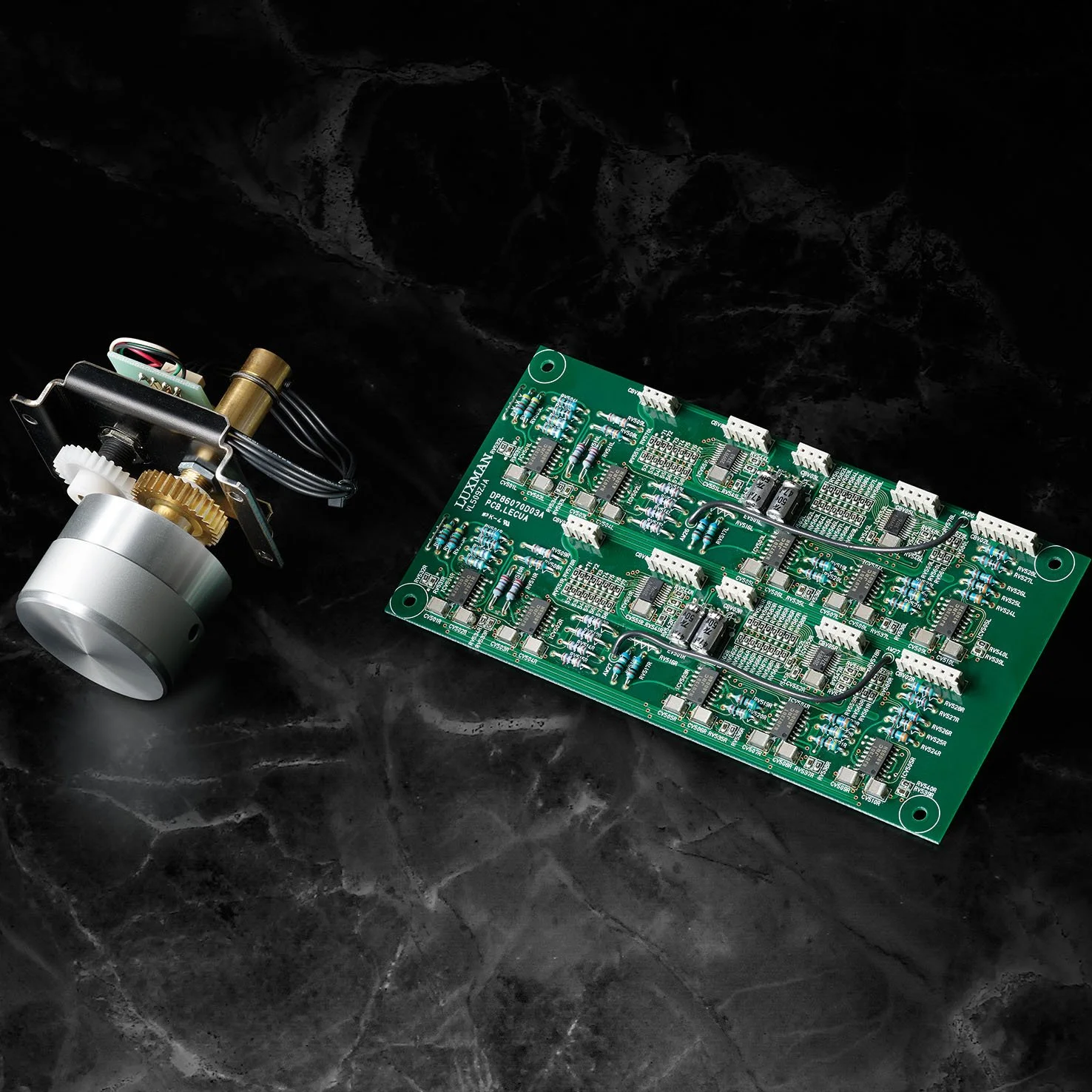

LECUA-EX analog volume control system
LIFES feedback system in both pre- and power-amp sections
highly regulated power supply
The attention to detail extends to the layout and construction of the circuit boards. Luxman’s “beeline” topology ensures the shortest signal path for delicate audio signals. Non-angled circuit traces ensure smooth signal transmission. The heart of the music is in the subtle details, and this design ensures not a single nuance is lost.
Function
Use the Luxman L-509Z, with its incredible resolution capability, to power a high-end stereo system. A pure, analog-only design, it includes the following inputs:
4 RCA line-level
2 XLR (balanced) line-level
1 RCA phono (accommodates both MM and MC cartridges)
Delivering 120 watts per channel into 8 ohms, and 220 watts into 4 ohms, the Luxman L-509Z is capable of driving difficult speaker loads.
Creative Audio Pro Tips
The Luxman L-509Z will sound great right out of the box, but will sound even better after 200 hours of use.
Always keep the top of the amplifier clear to allow for adequate ventilation (we recommend a minimum of 3-5 inches). Do not place the unit in a closed cabinet.
We always recommend quality interconnect cables both from your source(s) as well as to your speakers.
Luxman L-509Z Technical Specifications
(reprinted from Luxman)
Rated Power Output:
120W + 120W (8 ohms)
220W + 220W (4 ohms)
Inputs:
1x Phono (MM or MC) stereo RCA
4x Line level stereo RCA
2x Line level balanced XLR
1x Power amp input RCA
Input sensitivity/input impedance:
Phono (MM): 2.5mV/47 kOhms
Phono (MC-H): 0.3mV/100 Ohms
Phono (MC-L): 0.1mV/40 Ohms
Line: 180mV/47kOhms
Balanced Line: 180mV/79kOhms
Power Amp In: 1.1V/47kOhms
Output voltage:
Pre Out: 1V
Frequency response:
Phono: 20Hz to 20kHz (±0.5dB)
Line: 20Hz to 100kHz (within -3dB)
Total harmonic distortion:
0.007% or less (8 ohms, 1kHz)
0.03% or less (8 ohms, 20Hz to 20kHz)
Signal-to-noise ratio (IHF-A):
Phono (MM): 87dB or more
Phono (MC-H): 70dB or more
Phono (MC-L): 62dB or more
Line: 106dB or more
Volume adjustment:
LECUA-EX
Amplification feedback circuit:
LIFES 1.0
Output configuration:
Bipolar 4-parallel push-pull
Damping factor:
330
Tone control range:
Bass: ±8dB at 100Hz
Midrange: ±8dB at 760Hz
Treble: ±8dB at 10kHz
Power supply:
115V (60Hz)
Power consumption:
390W Maximum
150W (under no signal)
0.5W (at standby)
External dimensions (WxHxD):
17.3” x 7.6” x 18.2”
Net weight:
64.8 pounds
Accessories:
Remote control (RA-17A)
Power cable
