Luxman L-507Z
$13,695
The penultimate integrated amplifier from Luxman. Built in Japan, this all-analog design delivers 110 watts per channel. Includes both MM and MC phono inputs and tone controls that let you tailor the sound to your taste.
Available by special order.
Creative Audio is Winnipeg’s authorized Luxman dealer.
Image Gallery
In the Press
“This combination of purity, balance and dynamics is hard to find at any price and makes the L-507z an especially good value.”
Design

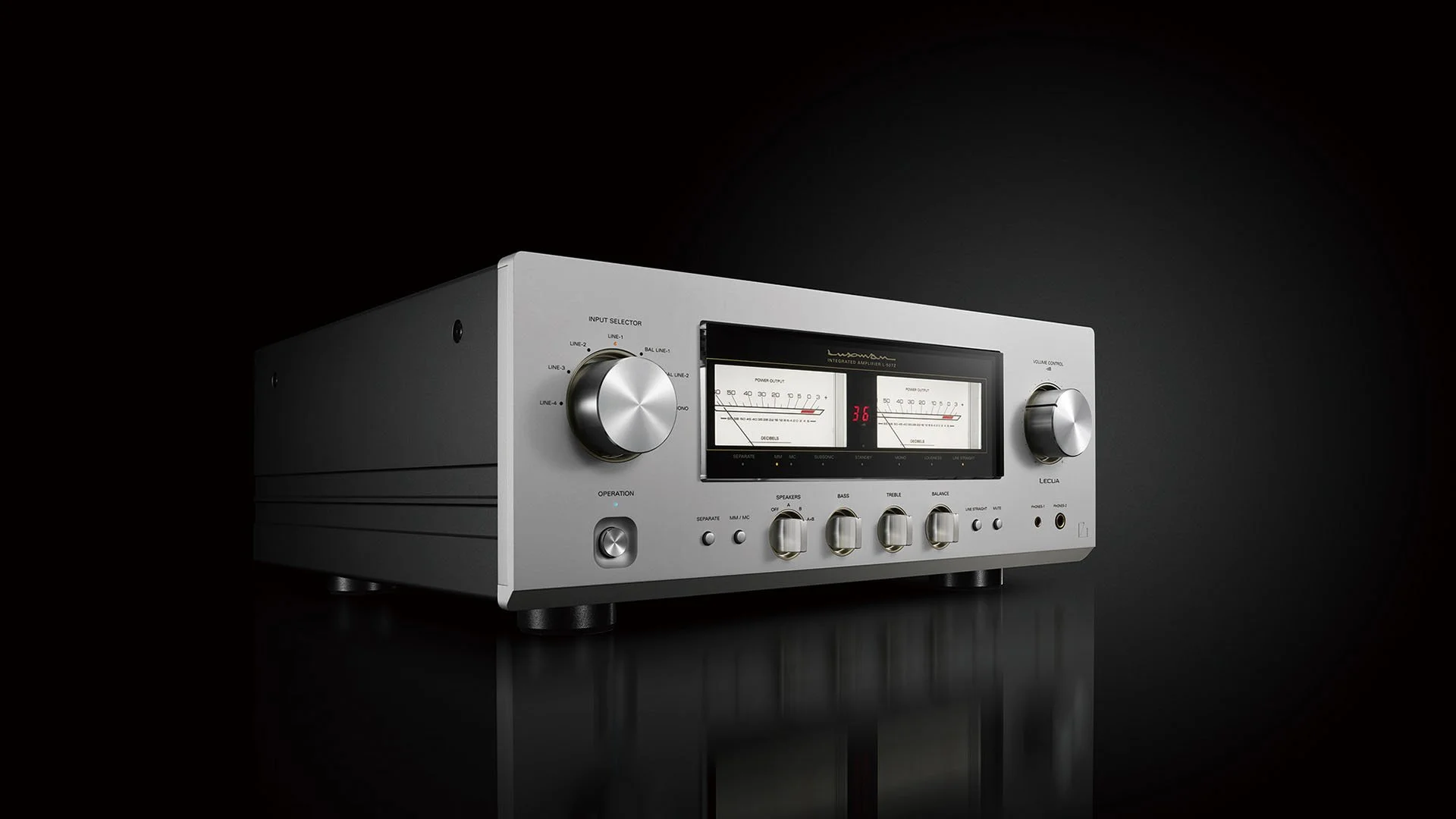

It’s the retro charm of the Luxman L-507Z that gets you right from the start. The beautifully finished silver metal faceplate is the backdrop for this amp’s vintage style cues:
Large backlit VU meters
Rotary tone and adjustment controls
Large rotary volume and input controls
It’s made in Japan, so of course the fit and finish is superb. Each rotary control moves with silky smooth precision, and each button press is satisfyingly tactile. There is a feeling of heft and purpose, and that build serves the ultimate goal of this amplifier: to minimize unwanted internal resonances that would negatively affect delicate signals and mask musical detail.
Technology
It may look like the amps of yesteryear, but inside the L-507Z is thoroughly modern and bristling with cutting-edge Luxman technology. When dealing with delicate analog signals, the quality of every component in the signal chain is important. At every stage you will find advanced solutions:
LECUA 1000 volume control
LIFES amplifier feedback system
highly regulated power supply
There is a fanatical attention to detail in every aspect of the L-507Z, even down to the layout and construction of the circuit boards. “Beeline” topology provides short signal paths and non-angled traces allow for smooth signal transmission. Subtle nuances in the the musical signal are preserved and the proof is in the audible level of detail in your favourite music.
Creative Audio Pro Tips
The Luxman L-507Z will sound great right out of the box, but will sound even better after 200 hours of use.
Always keep the top of the amplifier clear to allow for adequate ventilation. Do not place the unit in a closed cabinet.
We always recommend quality interconnect cables both from your source(s) as well as to your speakers.
Luxman L-507Z Technical Specifications
(reprinted from Luxman)
Rated Power Output:
110W + 110W (8 ohms)
220W + 220W (4 ohms)
Inputs:
1x Phono (MM or MC) stereo RCA
4x Line level stereo RCA
2x Line level balanced XLR
1x Power amp input RCA
Input sensitivity/input impedance:
Phono (MM): 2.5mV/47 kOhms
Phono (MC-H): 0.3mV/100 Ohms
Phono (MC-L): 0.1mV/40 Ohms
Line: 180mV/47kOhms
Balanced Line: 180mV/79kOhms
Power Amp In: 1.05V/47kOhms
Output voltage:
Pre Out: 1V
Frequency response:
Phono: 20Hz to 20kHz (±0.5dB)
Line: 20Hz to 100kHz (within -3dB)
Total harmonic distortion:
0.007% or less (8 ohms, 1kHz)
0.03% or less (8 ohms, 20Hz to 20kHz)
Signal-to-noise ratio (IHF-A):
Phono (MM): 91 dB or more
Phono (MC): 75 dB or more
Line: 105dB or more
Volume adjustment:
LECUA1000
Amplification feedback circuit:
LIFES 1.0
Output configuration:
Bipolar 3-parallel push-pull
Damping factor:
300
Tone control range:
Bass: ±8dB at 100Hz
Treble: ±8dB at 10kHz
Power supply:
115V (60Hz)
Power consumption:
350W Maximum
86W (under no signal)
0.4W (at standby)
External dimensions (WxHxD):
17.3” x 7” x 17.9”
Net weight:
56 pounds pounds
Accessories:
Remote control (RA-17A)
Power cable
