Luxman L-505Z
$9,000
Your entry into the world of Luxman integrated amplifiers. With 100 watts per channel of clean Japanese power and a fully analog design complete with MM and MC phono inputs, this amplifier is ready to take charge of your high-end audio experience.
Buy today! This item is currently in stock.
Available to audition in the Creative Audio showroom.
Creative Audio is Winnipeg’s authorized Luxman dealer.
Image Gallery
Design

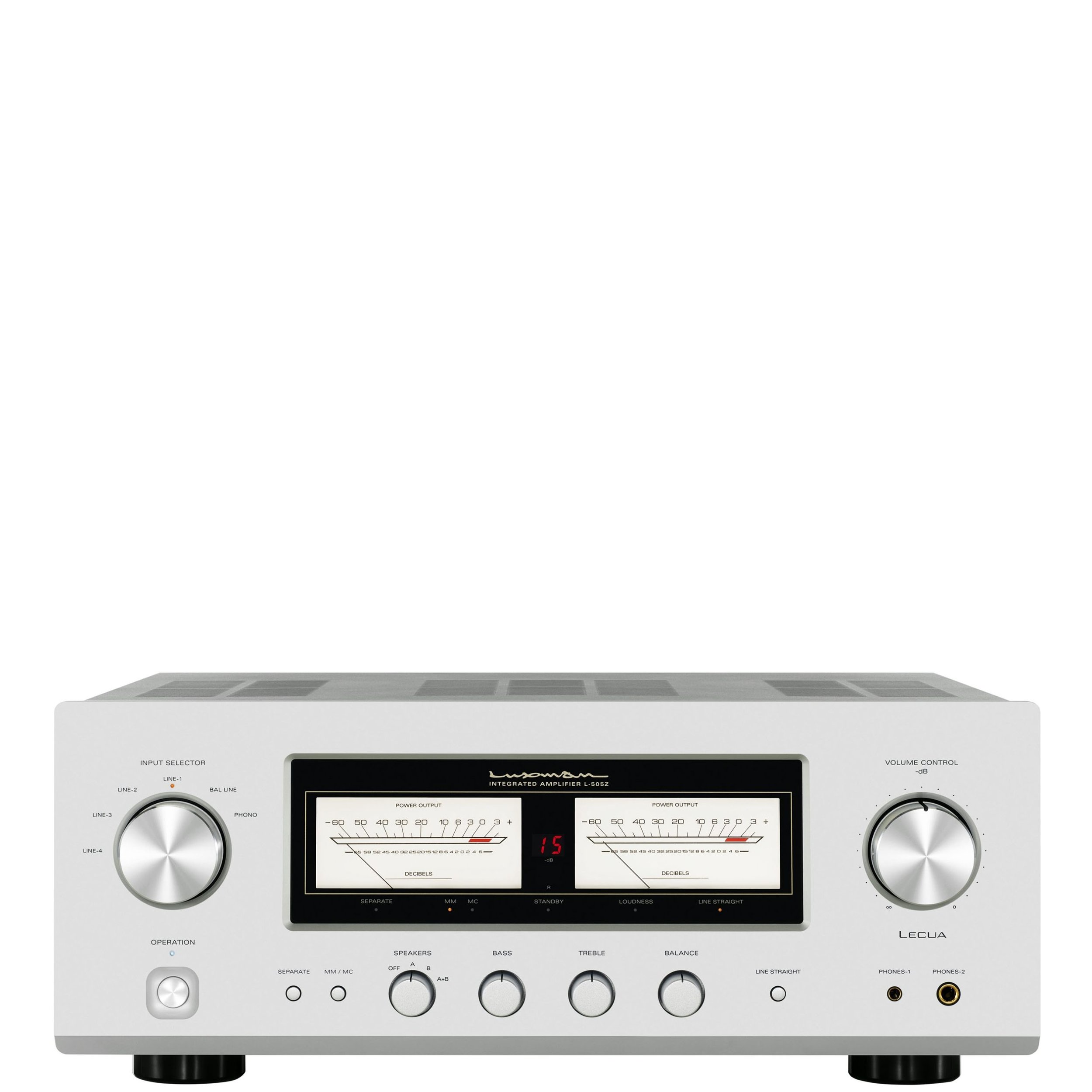

This thoroughly modern amplifier is wrapped in a nostalgic look, with the wonderful retro vintage charm that comes with large analog VU meters that dance to the beat of your music. A large red LED volume level readout makes control from your listening position easy, and once you’ve got the volume set this display can be set to turn off.
Like all Luxman products, the L-505Z integrated amplifier is built to the levels you’d expect from a precision Japanese made instrument. Beautiful brushed and polished accents on the metal controls exude luxury in their look and feel. Every control operates with authority and purpose.
Technology
It’s the most-used control on an amplifier and one that can have a dramatic effect on sound quality. The LECUA (Luxman Electronically Controlled Ultimate Attenuator) volume control in the Luxman L-505Z integrated amplifier offers precise control of the level of your music over 88 fine steps. Luxman’s design minimizes distortion across all volume levels, ensuring that the amplifier operates as intended, bringing your favourite music closer to you.
Like its higher-end siblings, the L-507Z and L-509Z, the Luxman L-505Z amplifier features the company’s proprietary LIFES (Luxman Integrated Feedback Engine System) technology. Originally introduced in their flagship M10X power amplifier, this technology has trickled down to this, their entry-level integrated amplifier. Through rigorous research and extended auditioning, this technology allows Luxman to reduce distortion and deliver more of what you really want: natural sounding music.
The Creative Audio Review
This is a brand new product to our showroom and we haven’t had a chance to put it through its paces yet. Watch this space!
Creative Audio Pro Tips
The Luxman L-505Z will sound great right out of the box, but will sound even better after 200 hours of use.
Always keep the top of the amplifier clear to allow for adequate ventilation. Do not place the unit in a closed cabinet.
We always recommend quality interconnect cables both from your source(s) as well as to your power amplifier.
Luxman L-505Z Technical Specifications
Rated Power Output:
100W + 100W (8 ohms)
150W + 150W (4 ohms)
Inputs:
1x Phono (MM or MC) stereo RCA
4x Line level stereo RCA
1x Line level balanced XLR
1x Power amp input RCA
Input sensitivity/input impedance:
Phono (MM): 2.5mV/47 kOhms
Phono (MC): 0.3mV/100 Ohms
Line: 180mV/47kOhms
Balanced Line: 180mV/79kOhms
Power Amp In: 1V/47kOhms
Output voltage:
Pre Out: 1V
Frequency response:
Phono: 20Hz to 20kHz (±0.5dB)
Line: 20Hz to 100kHz (within -3dB)
Total harmonic distortion:
0.009% or less (8 ohms, 1kHz)
0.09% or less (8 ohms, 20Hz to 20kHz)
Signal-to-noise ratio (IHF-A):
Phono (MM): 87dB or more
Phono (MC-H): 70dB or more
Phono (MC-L): 62dB or more
Line: 104dB or more
Volume adjustment:
LECUA
Amplification feedback circuit:
LIFES 1.0
Output configuration:
Bipolar parallel push-pull
Damping factor:
200
Tone control range:
Bass: ±8dB at 100Hz
Treble: ±8dB at 10kHz
Power supply:
115V (60Hz)
Power consumption:
330W Maximum
90W (under no signal)
0.5W (at standby)
External dimensions (WxHxD):
17.3” x 7” x 17.9”
Net weight:
49.6 pounds
Accessories:
Remote control (RA-17A)
Power cable
