Luxman L-100 Centennial

$16,695

Created to celebrate Luxman’s 100th anniversary, this pure Class A integrated amplifier includes balanced inputs as well as both moving magnet and moving coil phono inputs.

Truck icon indicating the Luxman L-100 Centennial is currently on order in Winnipeg at Creative Audio.On order and arriving soon!


Luxman company logo.


Creative Audio is Winnipeg’s authorized Luxman dealer.


Image Gallery


Design

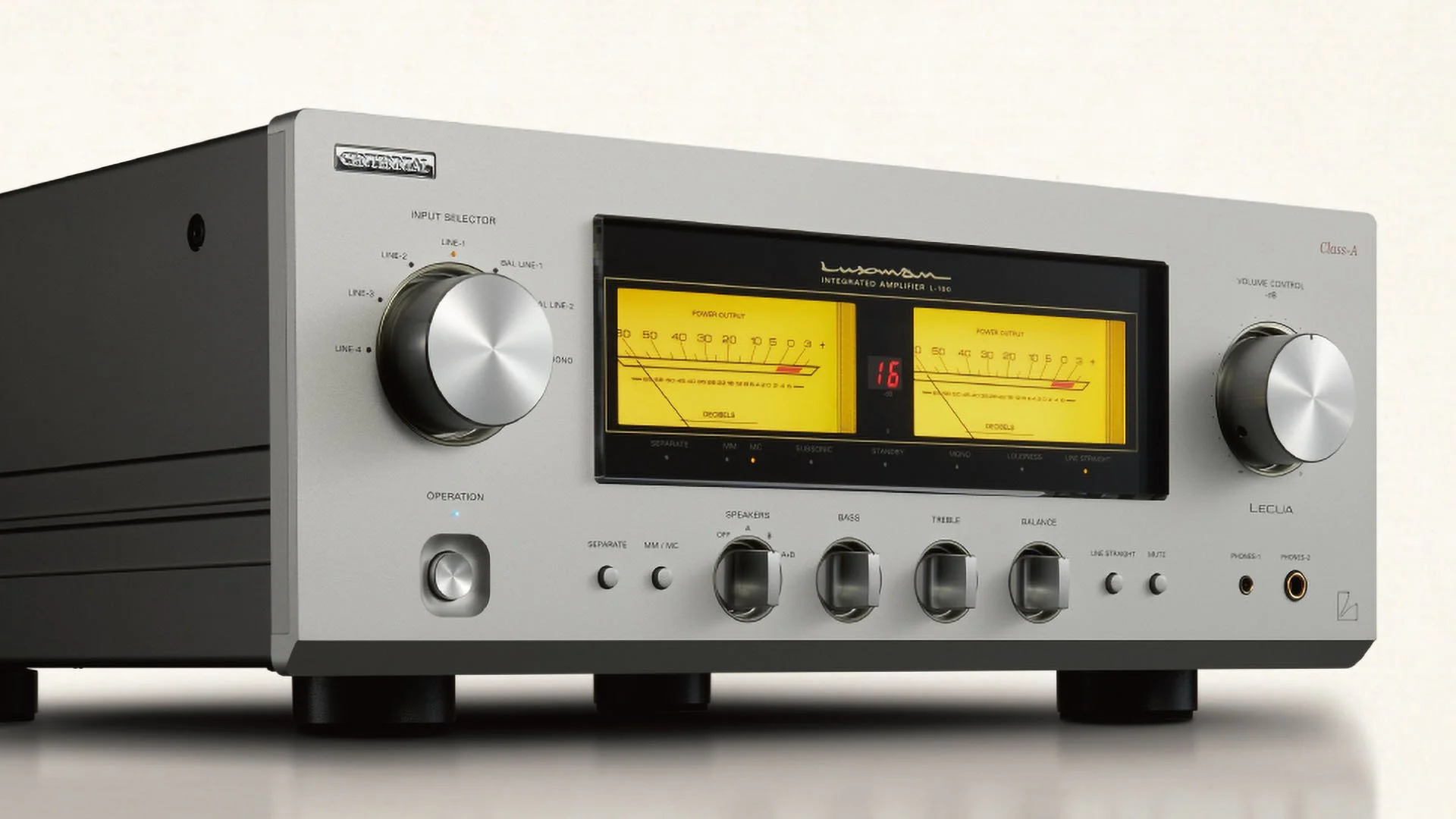

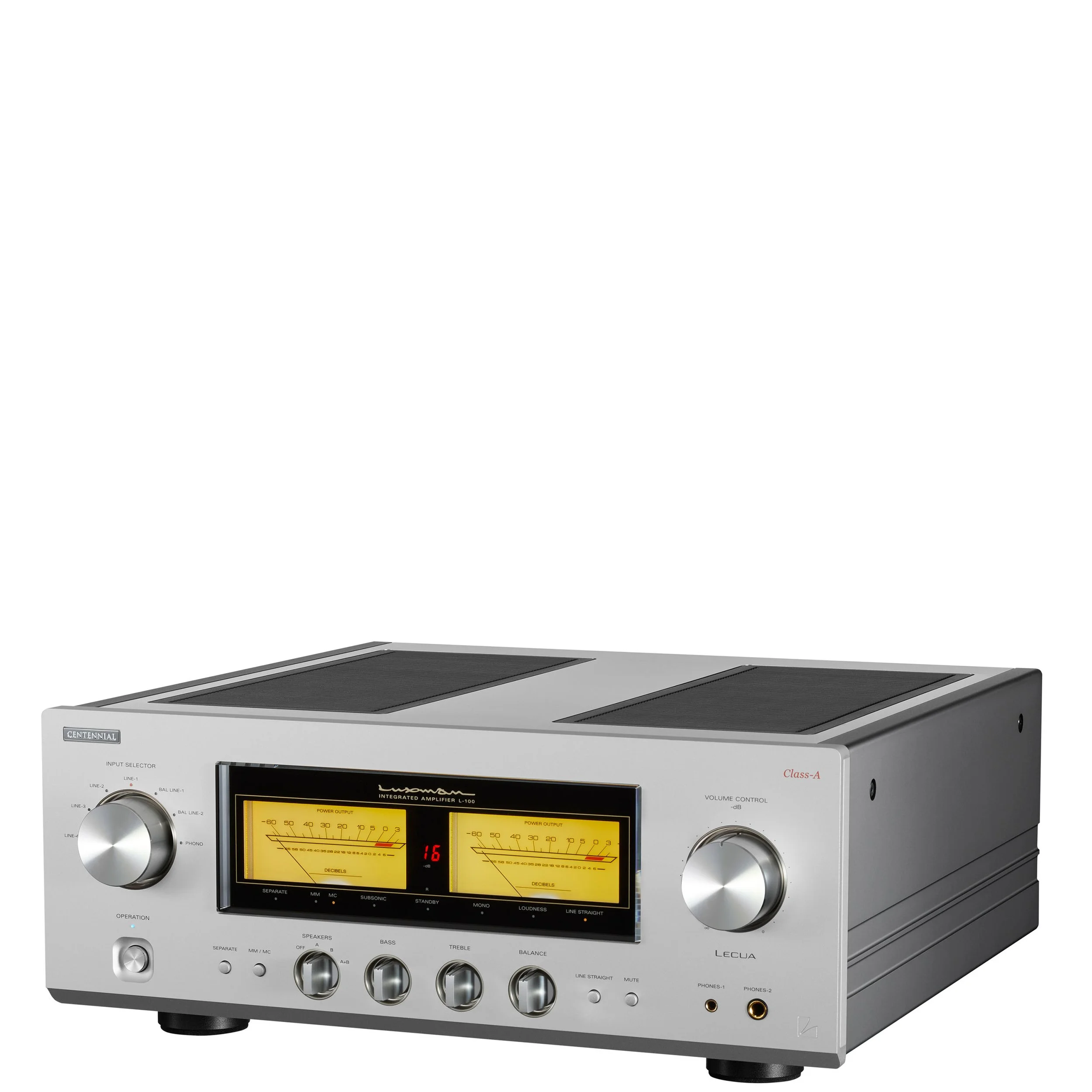

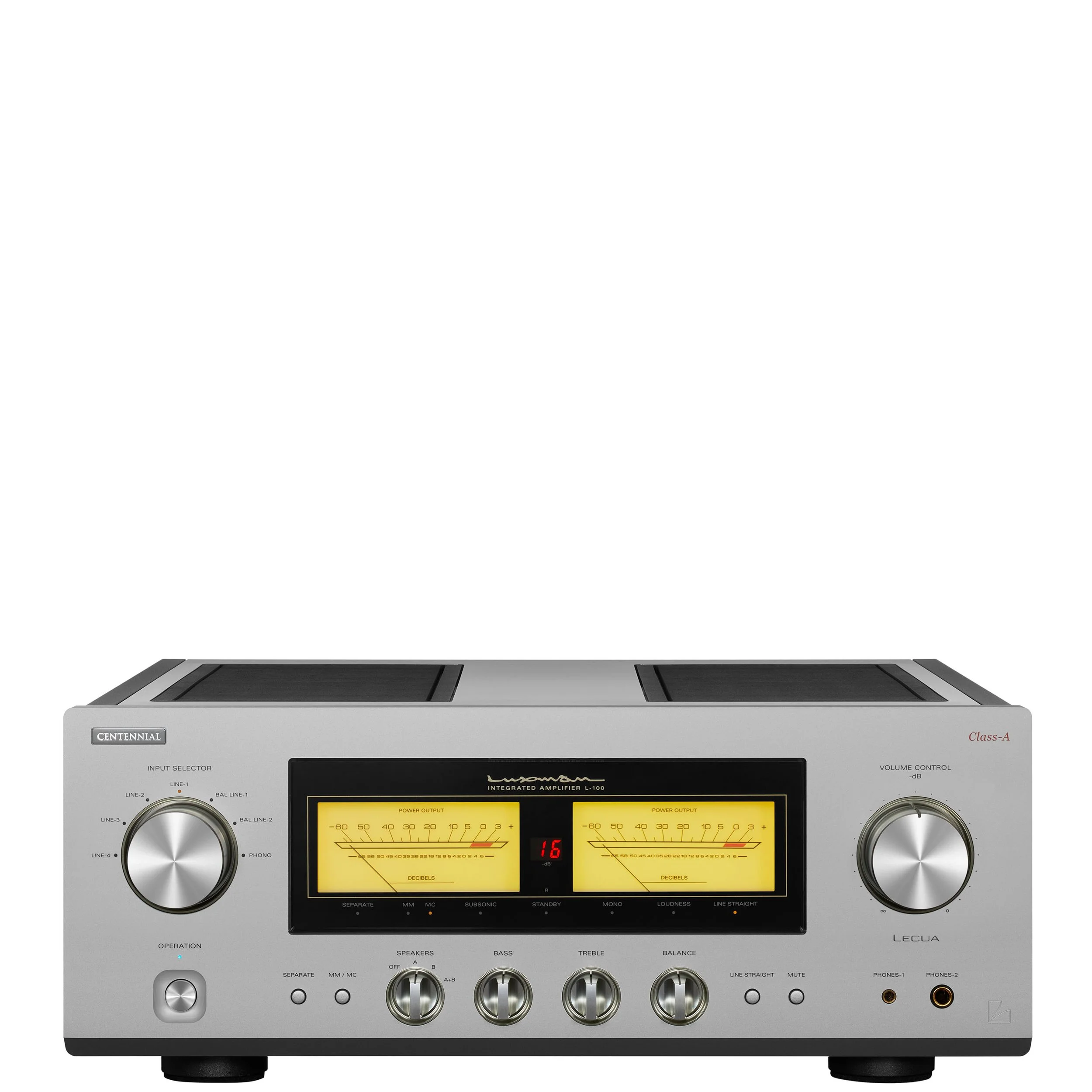

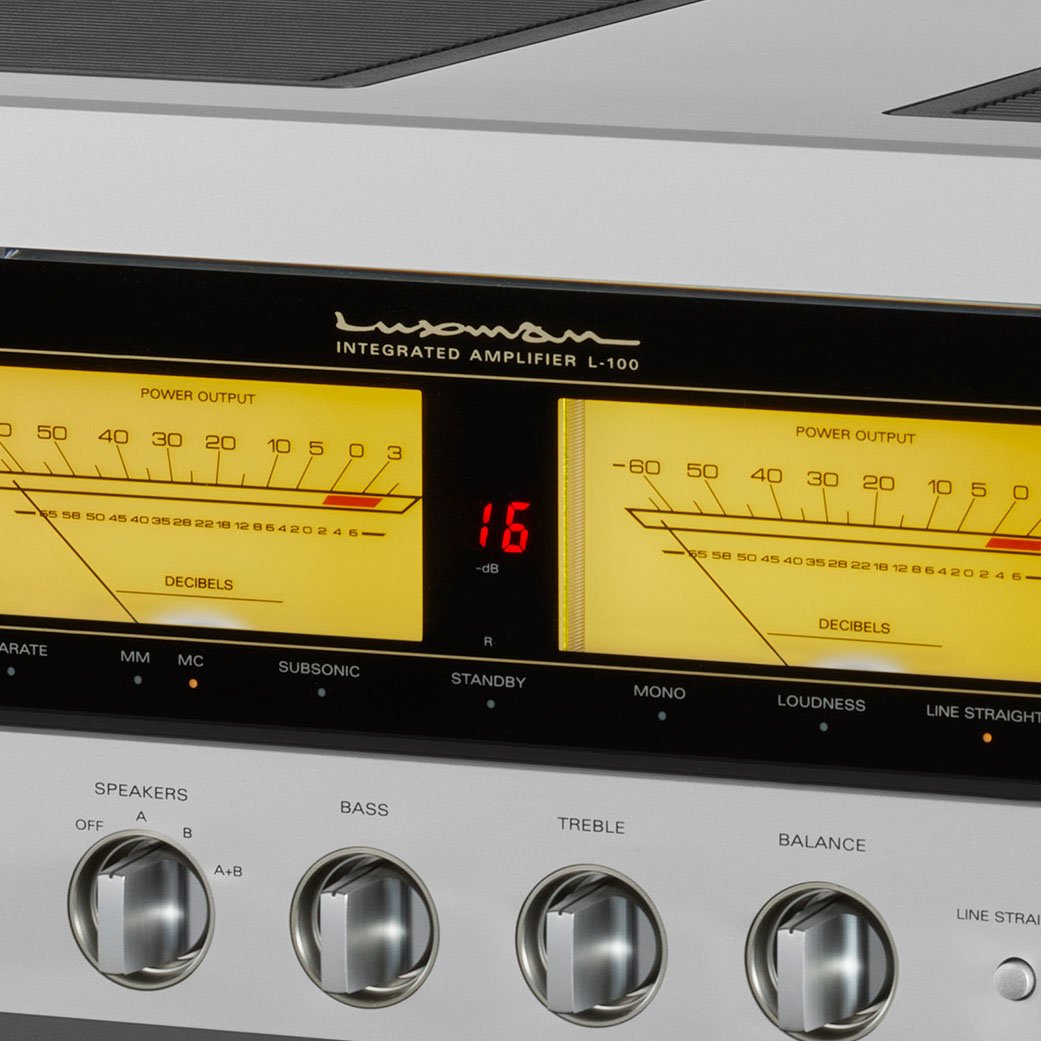

Bathed in a warm glow, large analog VU meters dominate the beautiful satin-finish front panel of the Luxman L-100 Centennial. The retro charm continues with the silver adjustment knobs including tone controls. As you would expect from a precision Japanese-made instrument, the fit and finish of the L-100 Centennial is superb. You will feel it in the movement of the volume control and the satisfying click of every button. The build quality extends to every facet of the chassis, from the top plate to the cast iron feet. All of this is in aid of improving performance by minimizing unwanted external vibrations from affecting the audio circuitry inside.


Technology

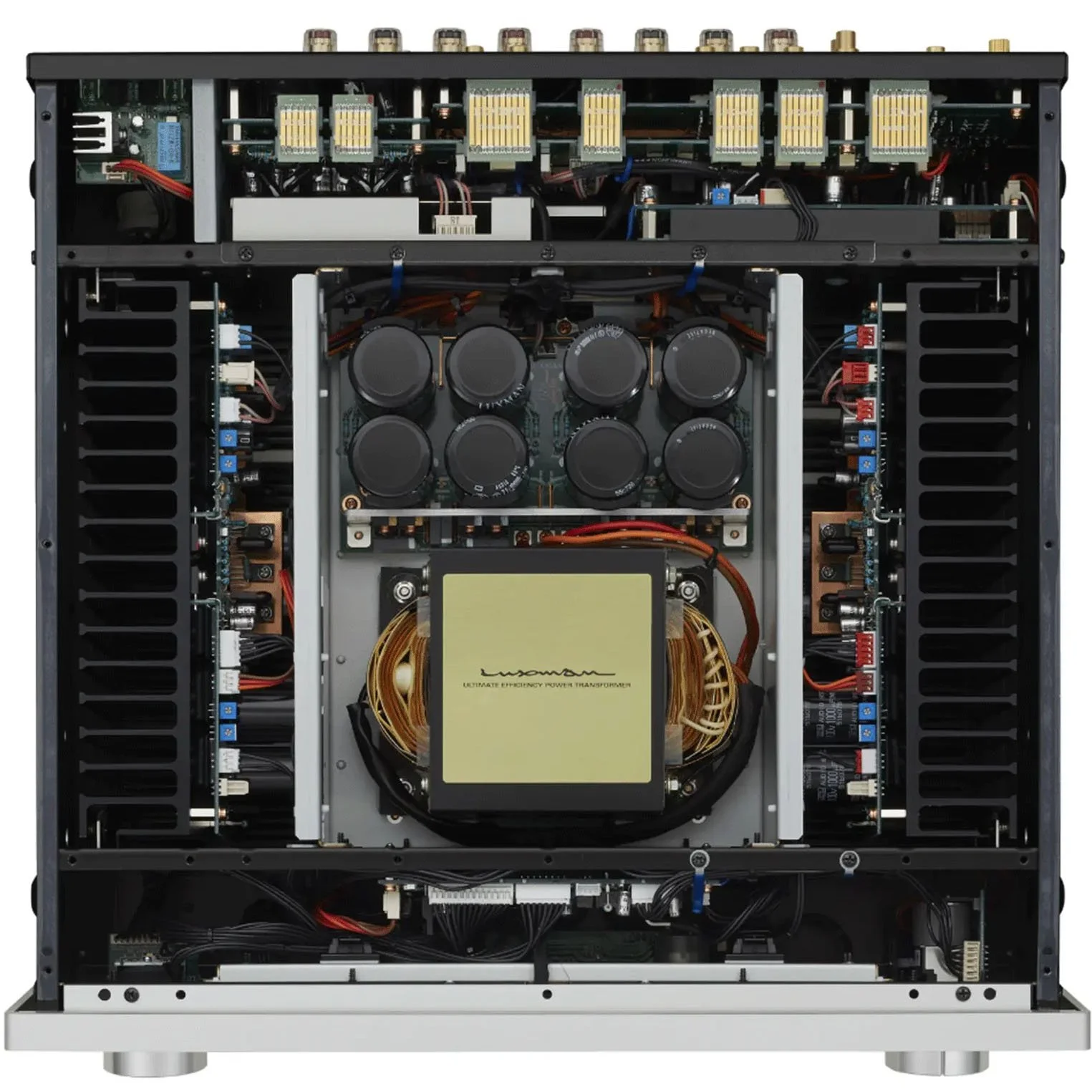

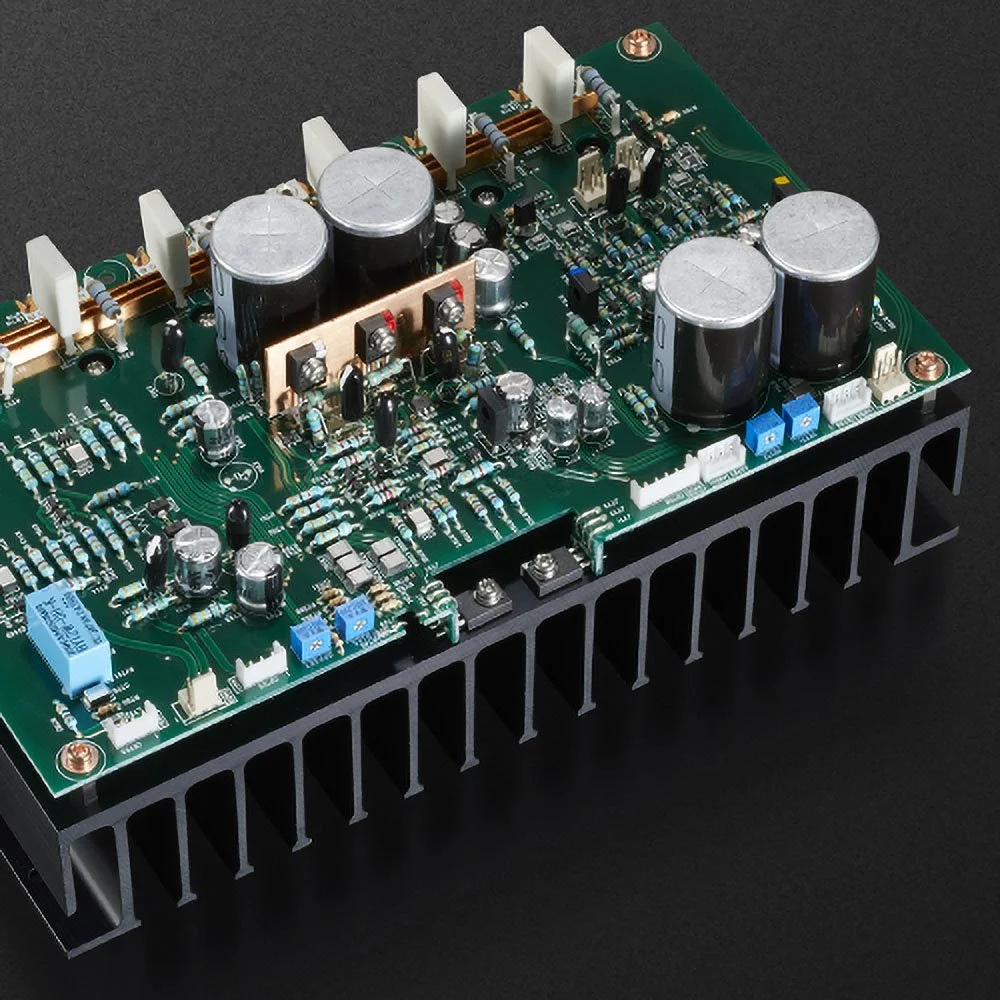

It may look vintage on the outside, but on the inside the L-100 Centennial is full of cutting-edge Luxman technology. Its pure Class A design puts musicality front and centre. Combined with the latest iteration of Luxman’s LIFES feedback system, you can be sure of an experience that will envelope you and hit all the feels. Every detail has been worked over to deliver the best performance, including the LECUA 1000 volume control, the massive power supply, and even the layout and shape of the traces on the circuit boards. This is attention to detail as only the Japanese can do. This is music, the Japanese way.



Creative Audio Pro Tips

  • The Luxman L-100 Centennial will sound great right out of the box, but will sound even better after 200 hours of use.

  • Always keep the top of the amplifier clear to allow for adequate ventilation. Do not place the unit in a closed cabinet.

  • We always recommend quality cables both from your source(s) as well as to your speakers.


Luxman L-100 Centennial Technical Specifications

(reprinted from Luxman)

Rated Power Output:
20W + 20W (8 ohms)
40W + 40W (4 ohms)

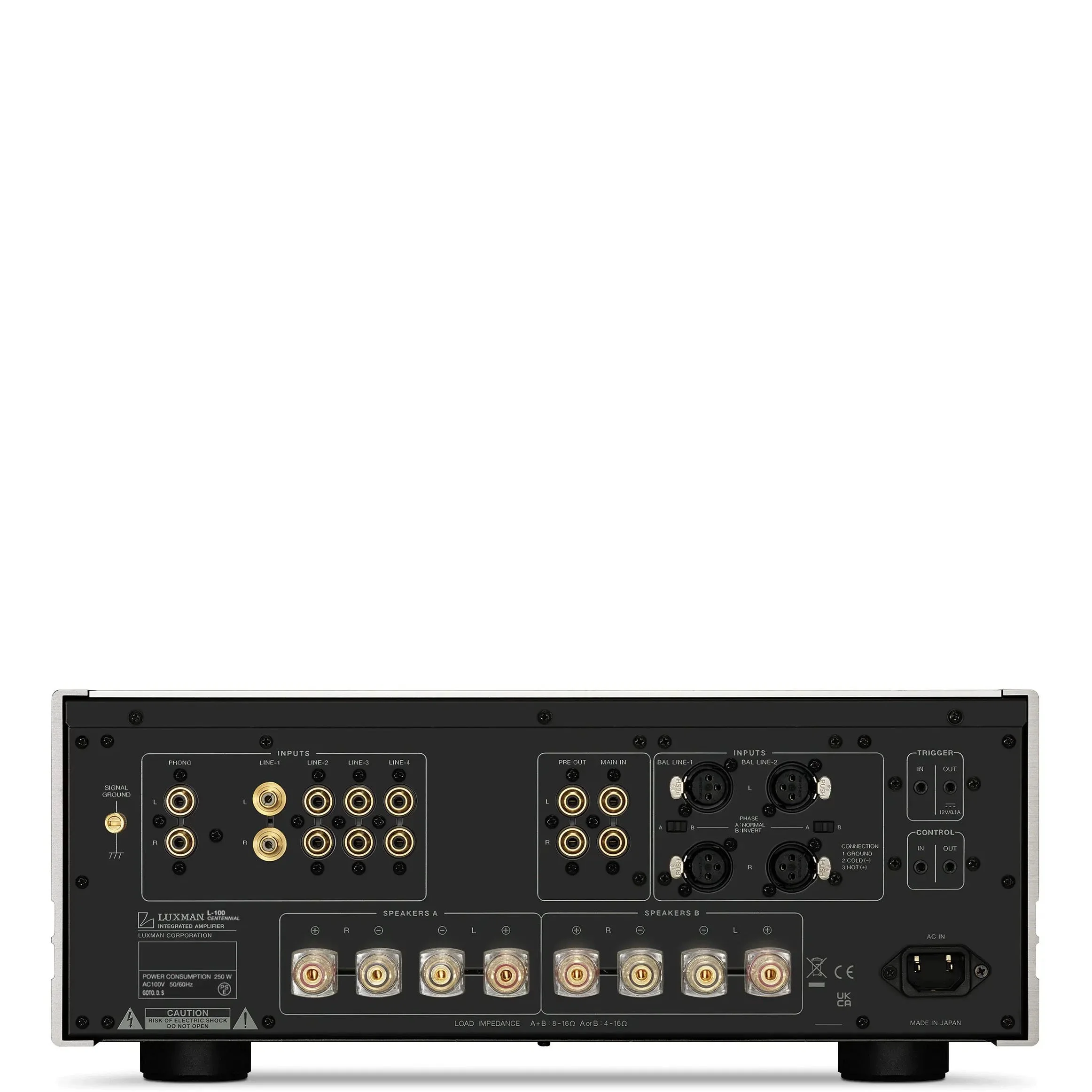

Inputs:
1x Phono (MM or MC) stereo RCA
4x Line level stereo RCA
2x Line level balanced XLR
1x Power amp input RCA

Input sensitivity/input impedance:
Phono (MM): 2.5mV/47 kOhms
Phono (MC-H): 0.3mV/100 Ohms
Line: 180mV/47kOhms
Balanced Line: 180mV/79kOhms
Power Amp In: 1450mV/47kOhms

Output voltage:
Pre Out: 1V

Frequency response:
Phono: 20Hz to 20kHz (±0.5dB)
Line: 20Hz to 100kHz (within -3dB)

Total harmonic distortion:
0.005% or less (8 ohms, 1kHz)
0.015% or less (8 ohms, 20Hz to 20kHz)

Signal-to-noise ratio (IHF-A):
Phono (MM): 80dB or more
Phono (MC-H): 65dB or more
Line: 98dB or more

Volume adjustment:
LECUA 1000

Amplification feedback circuit:
LIFES 1.1

Output configuration:
Bipolar 3-parallel push-pull

Damping factor:
300

Tone control range:
Bass: ±8dB at 100Hz
Treble: ±8dB at 10kHz

Power supply:
115V (60Hz)

Power consumption:
260W Maximum
210W (under no signal)
0.5W (at standby)

External dimensions (WxHxD):
17.3” x 7” x 17.9”

Net weight:
56 pounds

Accessories:

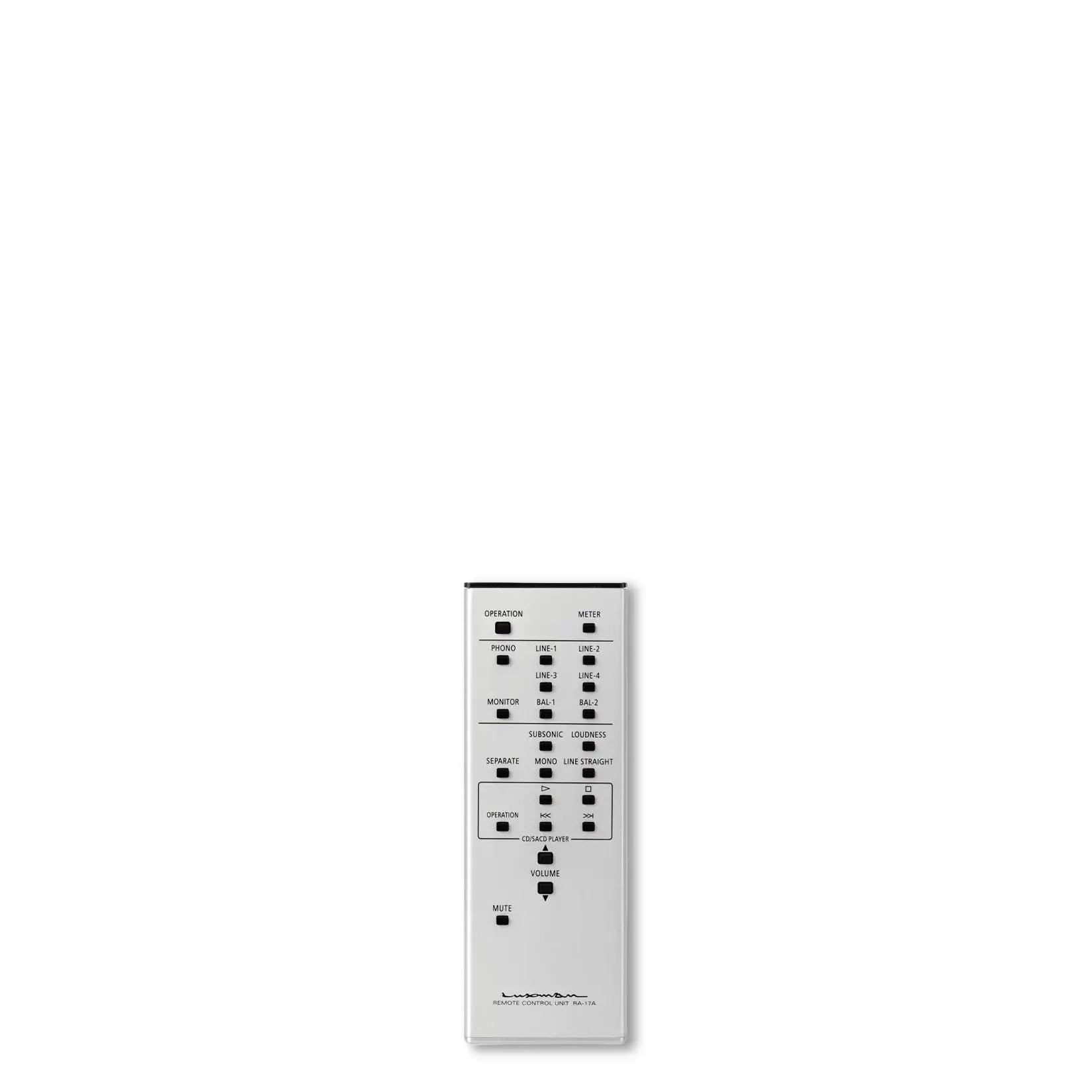

Remote control (RA-17A)
Power cable
