Luxman DA-07X

$11,300

Bring your digital sources to life with this premium digital-to-analog converter. Advanced digital circuitry is combined with Luxman’s legendary analog circuit design to deliver an astonishing musical performance.

Human graphic indicating you can audition the Luxman DA-07X in Winnipeg at the Creative Audio showroom.Available to audition (D-07X) in the Creative Audio showroom.

Truck icon indicating the Luxman DA-07X digital to analog converter is a special order item in Winnipeg at Creative Audio.Special order.


Luxman company logo.


Creative Audio is Winnipeg’s authorized Luxman dealer.


Image Gallery


Technology

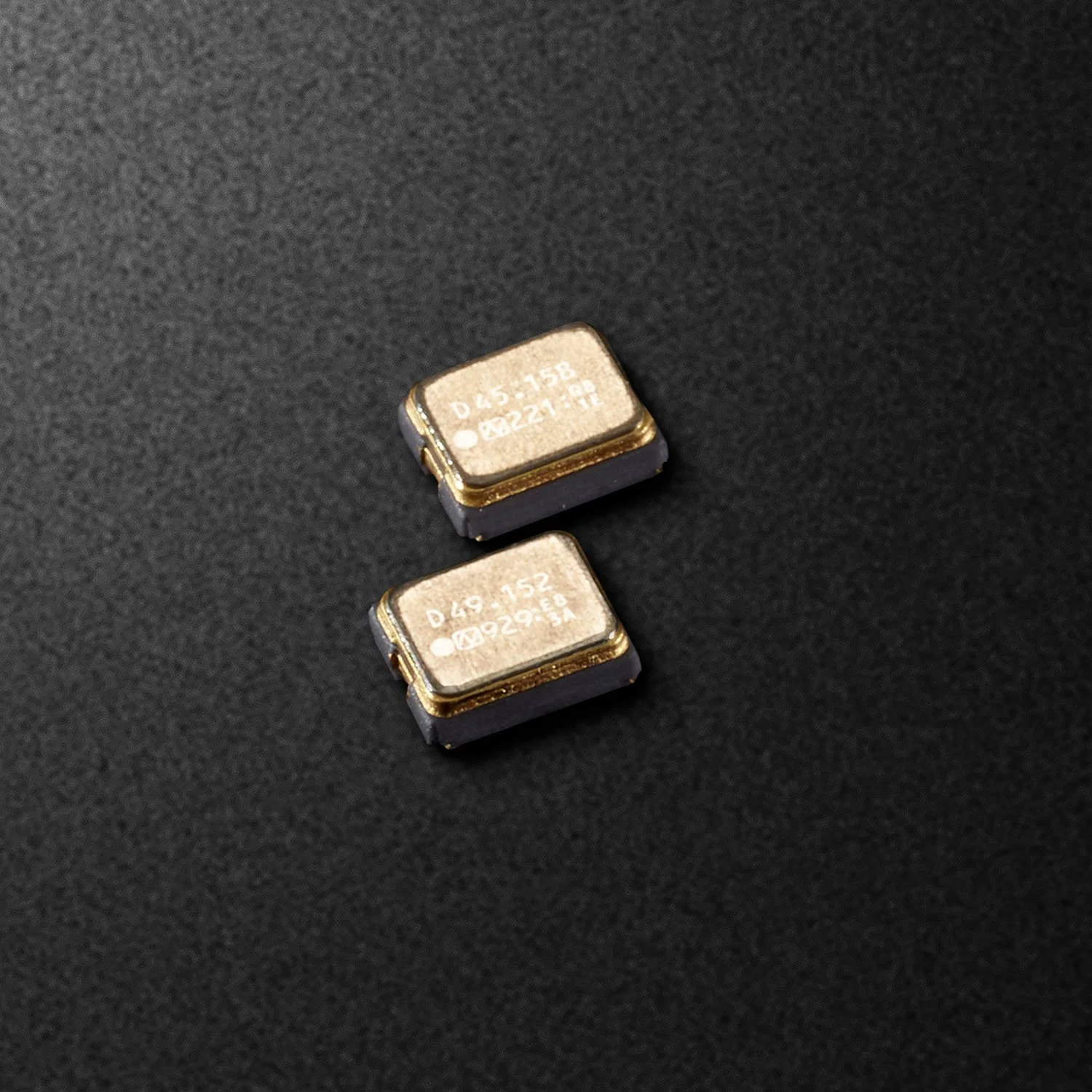

The timing of digital data is integral to the performance of any digital-to-analog converter. In the DA-07X, Luxman uses two ultra-low noise modules. Their high-precision and low jitter reduce unwanted noise to ensure the digital-to-analog circuits have the purest signal with which to do their work.

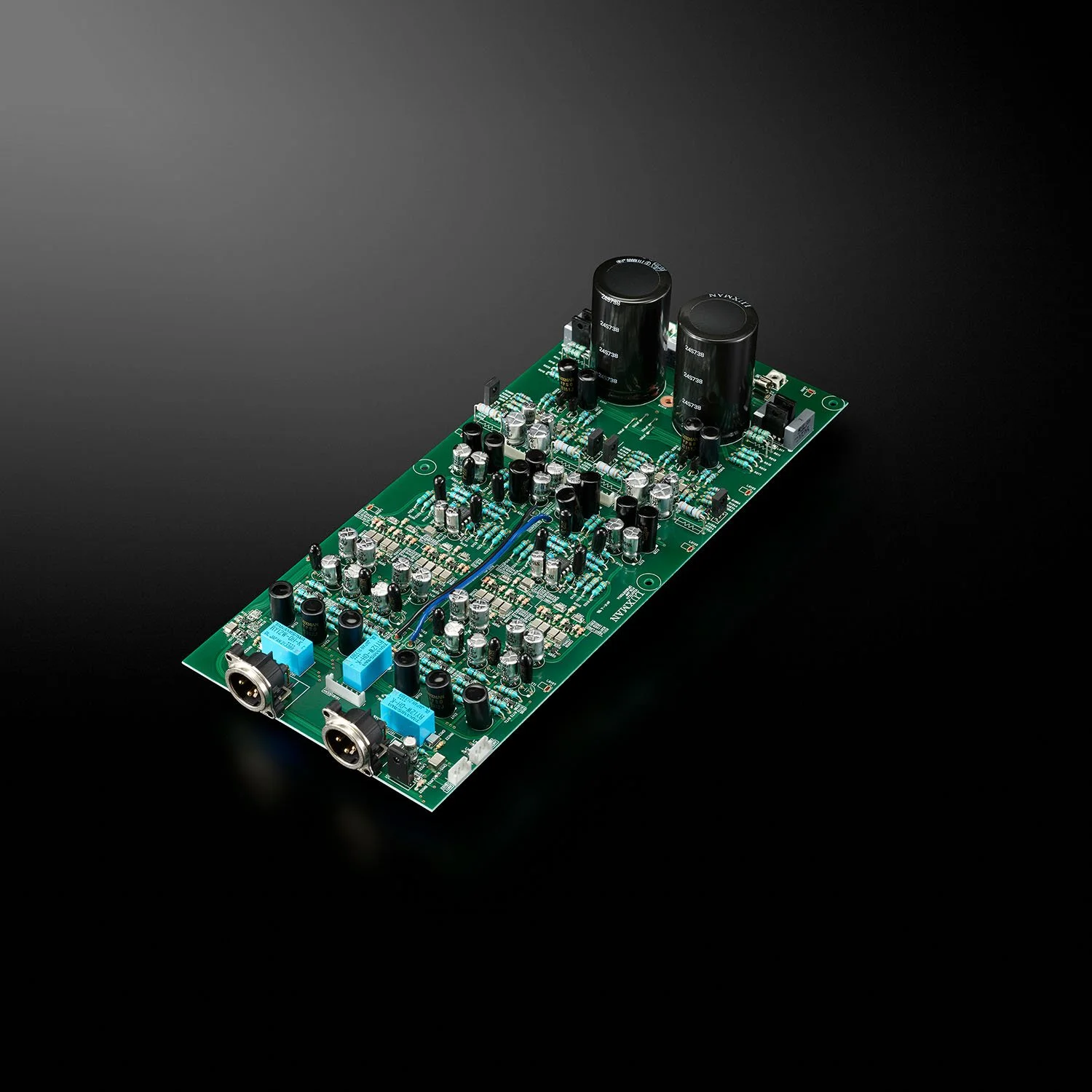

Too often people forget about the analog in a digital-to-analog converter. We listen in analog, after all, and the quality of the analog output section has a massive effect on the sound of a D/A converter. Fortunately Luxman has over 100 years of experience in analog circuit design and so you know this delicate signal will be treated with the utmost care. Here you’ll find non-angled PCB traces, silent relays, and internal shielding from digital circuits to ensure a pristine analog signal is delivered to your amplifier or pre-amplifier.


Creative Audio Pro Tips

  • The Luxman DA-07X will sound great right out of the box, but will sound even better after 100 hours of use.

  • We always recommend quality interconnect cables to your amplifier.


Luxman DA-07X Technical Specifications

(reprinted from Luxman)

Supported sampling frequencies:
USB input (PCM): 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz (16, 24, 32-bit)
USB input (DSD): 2.8 MHz, 5.6 MHz, 11.2 MHz (1-bit)
Coaxial / Optical input: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (16, 20, 24-bit)

Analog output voltage / impedance:
Unbalanced: 2.4 V / 300 ohms
Balanced: 2.4 V / 600 ohms
For DSD: 2.3 V

Frequency response:
Digital Inputs: 5 Hz to 20 kHz (+0, -1.0 dB)
USB, digital inputs: 5 Hz to 47 kHz (+0, -3.0 dB)

Total harmonic distortion:
CD: 0.001 %

Signal-to-noise ratio (IHF-A):
124 dB

Digital-to-analog converter:
ROHM BD34301EKV (monaural mode) x 2

Power supply:
115 V~ (60 Hz)

Power consumption:
21W

Dimensions (WxHxD):
17.3” x 3.6” x 15.8”

Net weight:
28.2 pounds

Accessories:
Power cable
