Luxman D-10X

$25,500

This flagship CD/SACD player and digital-to-analog converter features Luxman’s most advanced mechanical, digital, and analog components to deliver the Japanese company’s ultimate expression of music.

Truck icon indicating the Luxman D-10X CD player is a special order item in Winnipeg at Creative Audio.Special order.


Luxman company logo.


Creative Audio is Winnipeg’s authorized Luxman dealer.


...supremely musical yet now with a degree of resolution, detail, and neutrality that will effectively reveal everything that is on any source you care to feed it. I never tired of listening to it.
— The Absolute Sound

Image Gallery


Technology

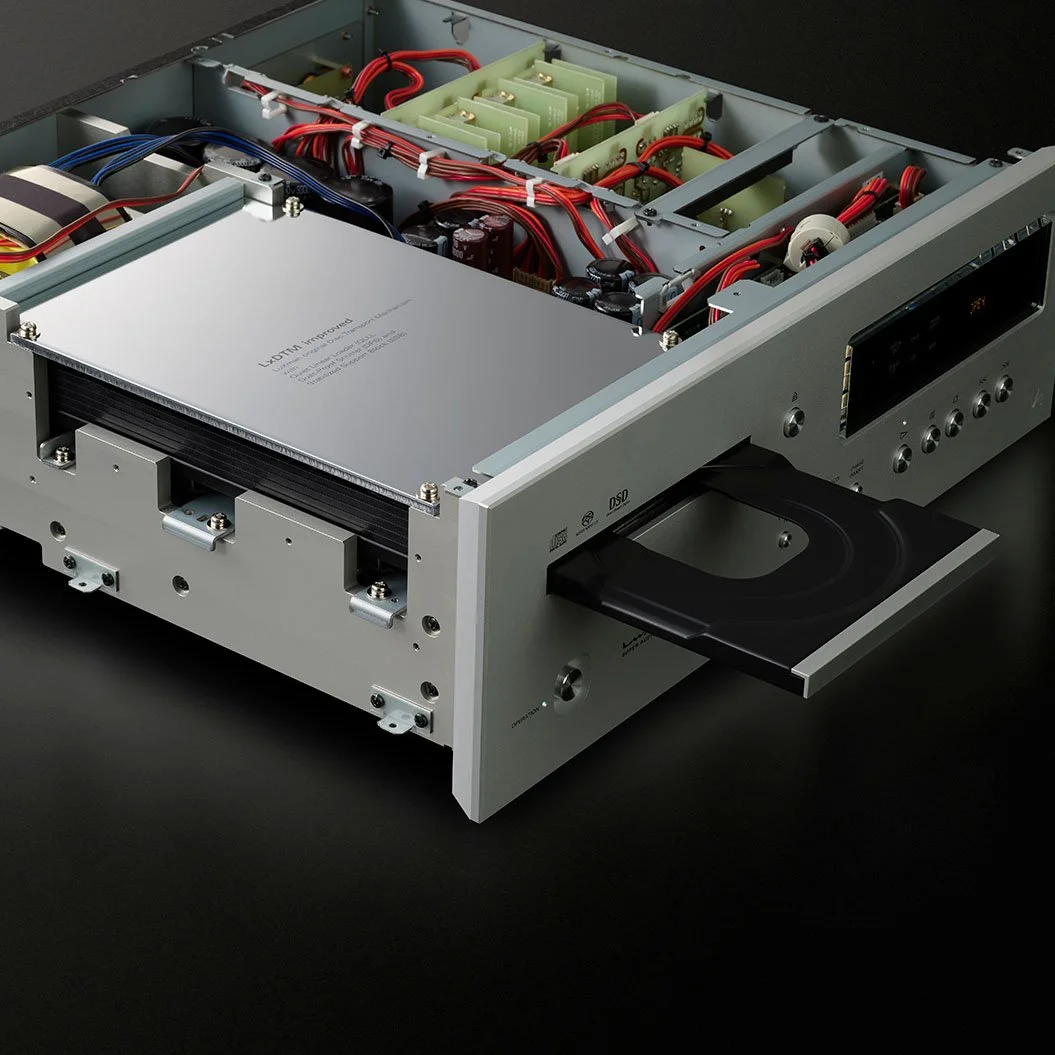

In Luxman’s flagship CD player, they have provided the ultimate mechanism for reading the digital data off the disc. The LxDTM-i transport has been engineered to minimize unwanted vibrations and resonances. 8mm thick aluminum sides and a 5mm thick steel top plate and integration into the structure of the entire machine, plus an improved disc reading mechanism ensure the purity of the original digital signal.

Having been carefully extracted from the disc (or accepted via the digital inputs), the Luxman D-10X then sends the digital signal to two ROHM Semiconductor BD34301EKV DAC chips (one per channel). This CD player was the first model in the world to use these new chips, and Luxman’s commitment to only the best in music reproduction shows their confidence in the capabilities of these tiny pieces of silicon.

We call CD players digital sources, but of course ultimately they must output an analog signal. The work of the Luxman D-10X is not over once the digital signal is converted to analog. The analog section is fully balanced and features Luxman’s proprietary feedback technology. Thick copper foil, gold-plated connections, and gently curved wiring patterns are hallmarks of Luxman’s circuit board design. All of this intense attention to detail is in aid of one thing: reducing distortion and delivering your music with the natural touch Luxman is famous for.


Creative Audio Pro Tips

  • The Luxman D-10X will sound great right out of the box, but will sound even better after 100 hours of use.

  • We always recommend quality interconnect cables to your amplifier.


Luxman D-10X Technical Specifications

Supported discs:
SACD, CD (CD-R, CD-RW, MQA-CD)

Supported sampling frequencies:
USB input (PCM): 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz,
705.6 kHz, 768 kHz (16, 24, 32-bit)
USB input (DSD): 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.4 MHz (1-bit)
Coaxial / Optical input: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (16, 20, 24-bit)

Analog output voltage / impedance:
Unbalanced: 2.4 V / 300 ohms
Balanced: 2.4 V / 600 ohms
For SACD / DSD: 1.3 V

Frequency response:
CD: 5 Hz to 20 kHz (+0, -1.0 dB)
SACD: 5 Hz to 38 kHz (+0, -3.0 dB)
USB: 5 Hz to 47 kHz (+0, -3.0 dB)

Total harmonic distortion:
CD: 0.0018 %
SACD: 0.001 %
USB: 0.0015 %

Signal-to-noise ratio (IHF-A):
CD: 125 dB
SACD: 121 dB
USB: 125 dB

Digital-to-analog converter:
ROHM BD34301EKV (monaural mode) x 2

Power supply:
115 V~ (60 Hz)

Power consumption:
48W

Dimensions (WxHxD):
17.3” x 6.1” x 16.5”

Net weight:
49.4 pounds

Accessories:
Remote control (RD-29)
Power cable
