Luxman D-03R

$8,495

Advanced technology in physical disc reading and digital-to-analog conversion for both discs and external digital sources brings a new level of performance to Luxman’s entry into the CD player market.

Available by special order.

Creative Audio is Winnipeg’s authorized Luxman dealer.

Image Gallery

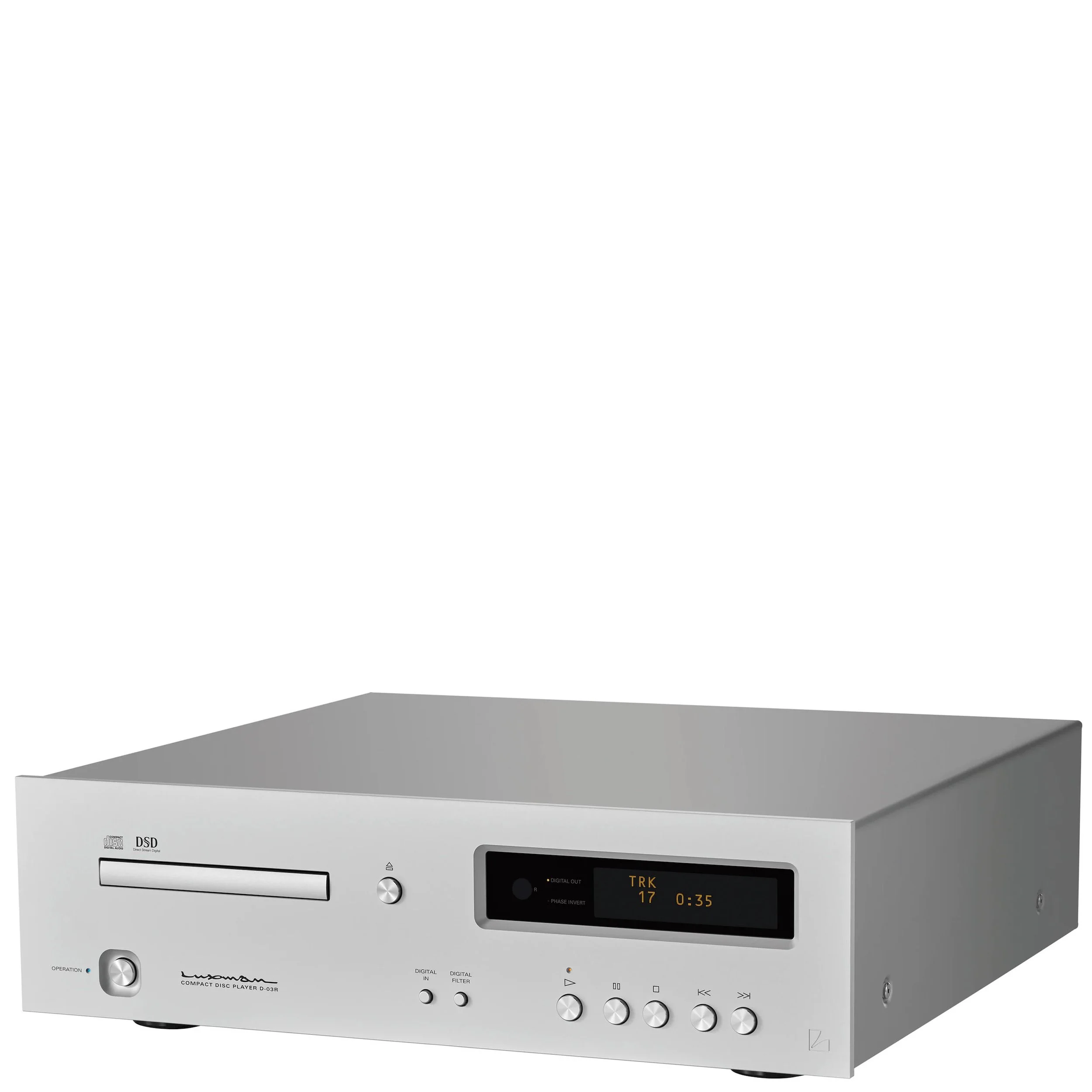

Angled view of the Luxman D-03R CD player.

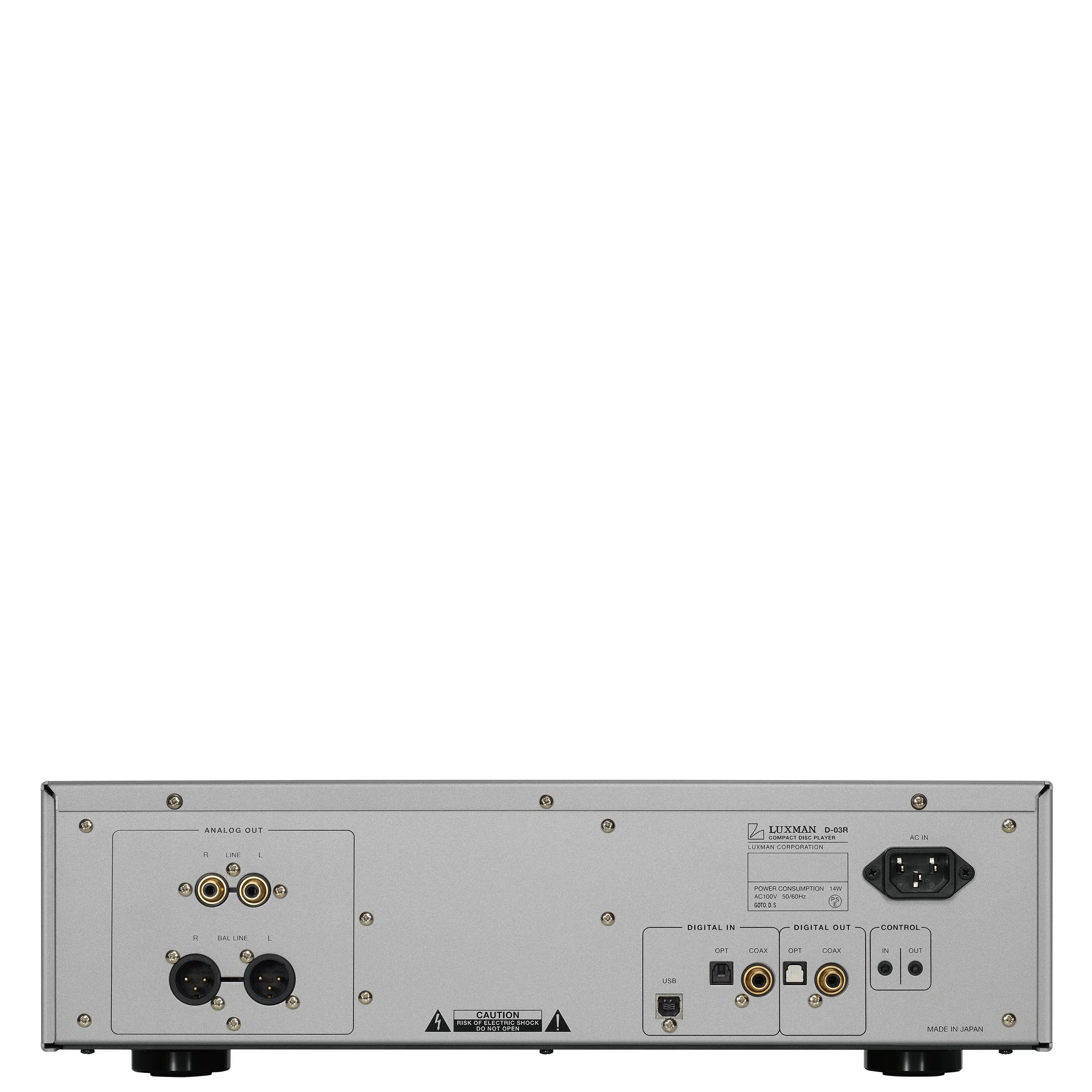

Back panel view of the Luxman D-03R CD player showing analog outputs and digital inputs.

Technology

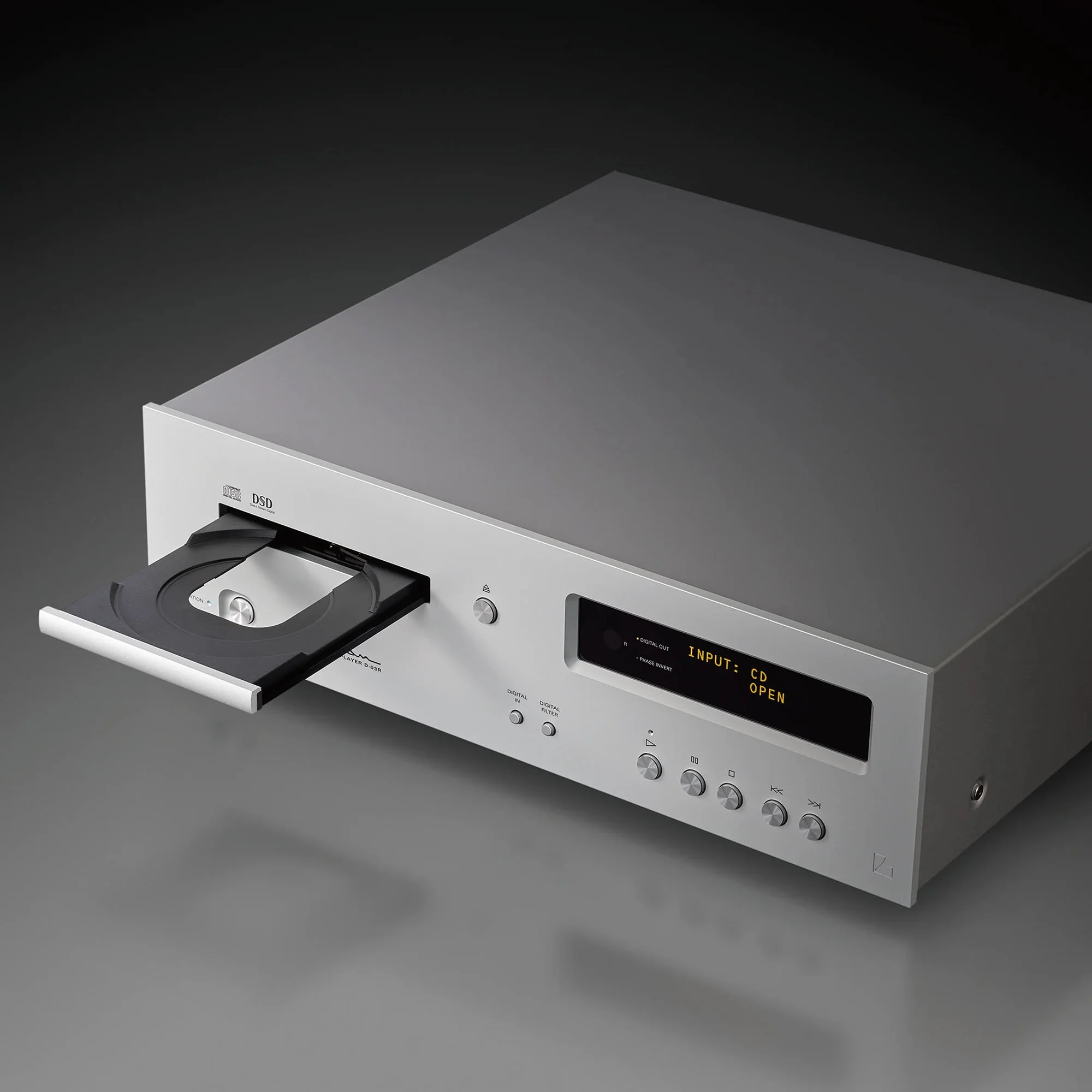

Luxman D-03R CD player shown with CD drawer open.

Each of the three main components of this CD player have been engineered for exacting performance. Starting with the CD drive, which has been purpose-built for audio CD playback. Sitting on a solid steel base 3.2mm thick, the transport mechanism is isolated from external vibrations and its own vibrations are dampened so as not to affect the rest of the circuitry in the player. The digital signal is fed to the dual-mono DAC configuration and from there the signal is fed through Luxman’s proprietary analog section. Custom-made OFC wiring and circuit board traces designed for optimal signal flow ensure the purity of the musical signal. You can experience the benefits of the digital and analog sections of the D-03R by using its digital inputs for your other stereo digital sources.

Creative Audio Pro Tips

The Luxman D-03R will sound great right out of the box, but will sound even better after 100 hours of use.
We always recommend quality interconnect cables from your source to your amplifier..

Luxman D-03R Technical Specifications

(reprinted from Luxman)

Supported discs:
CD, MQA-CD

Supported sampling frequencies:
USB input (PCM) : 44.1 kHz, 48 Hz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz (16, 24, 32-bit)
USB input (DSD) : 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.5 MHz (1-bit)
Coaxial / Optical input : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (16, 20, 24-bit), 2.8 MHz (DoP)

Analog output voltage / impedance:
Unbalanced : 2.4 V / 300 Ω
Balanced : 2.4 V / 600 Ω

Frequency response:
CD : 5 Hz to 20 kHz (+0, -1.0 dB)
COAX / OPT : 5 Hz to 47 kHz (+0, -3.0 dB)
USB : 5 Hz to 47 kHz (+0, -3.0 dB)

Total harmonic distortion:
CD : 0.002 %
COAX / OPT : 0.001 %
USB : 0.001 %

Signal-to-noise ratio (IHF-A):
CD : 110 dB
COAX / OPT :118 dB
USB : 118 dB

Digital-to-analog converter:
ROHM BD34352EKV (monaural mode) x 2

Power supply:
115 V～ (60 Hz)

Power consumption:
16W

Dimensions (WxHxD):
17.3” x 5.2” x 16.1”

Net weight:
29.1 pounds

Accessories:
Remote control (RD-28)
Power cable
