Luxman C-10X
$25,995
A high-end analog stereo preamplifier designed to maintain signal purity to reveal the finest details in your favourite music.
Available by special order.
Creative Audio is Winnipeg’s authorized Luxman dealer.
Image Gallery

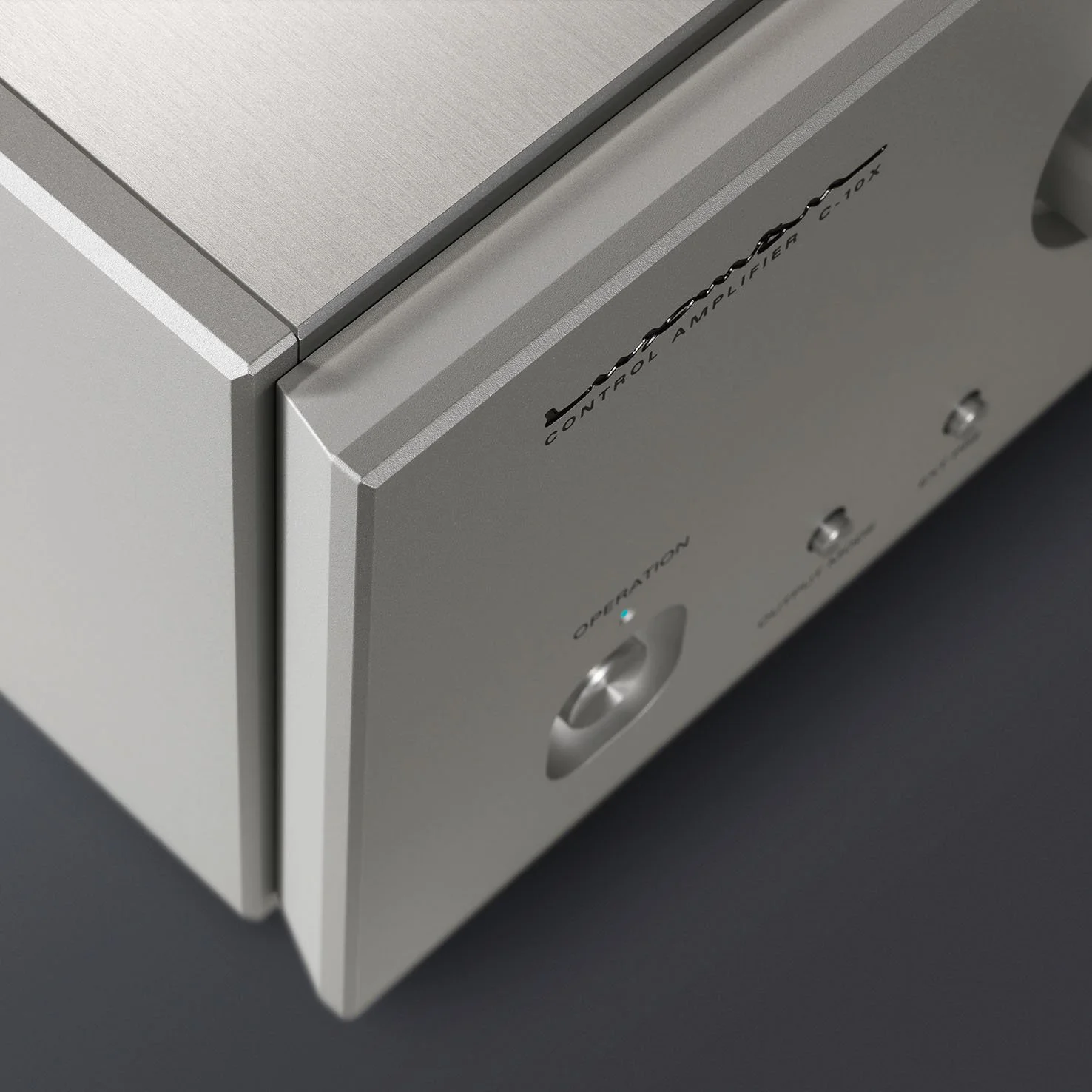

Design
Precision. That is the first word that comes to mind when you see and feel the Luxman C-10X for the first time. A dedicated preamplifier (combined with a power amplifier, and this combo in place of an all-in-one integrated amplifier) is chosen by music lovers for the layers of fine musical detail it can reveal. You’ll get a hint of the detail to come as you notice the details in the construction of the C-10X:
Precision-machined metal casework
Silky smooth rotary controls
Solid tactile control buttons
At over 40 pounds, the C-10X weighs more than some (good!) amplifiers. The Luxman C-10X means business and that business is extracting every last detail out of your favourite songs.

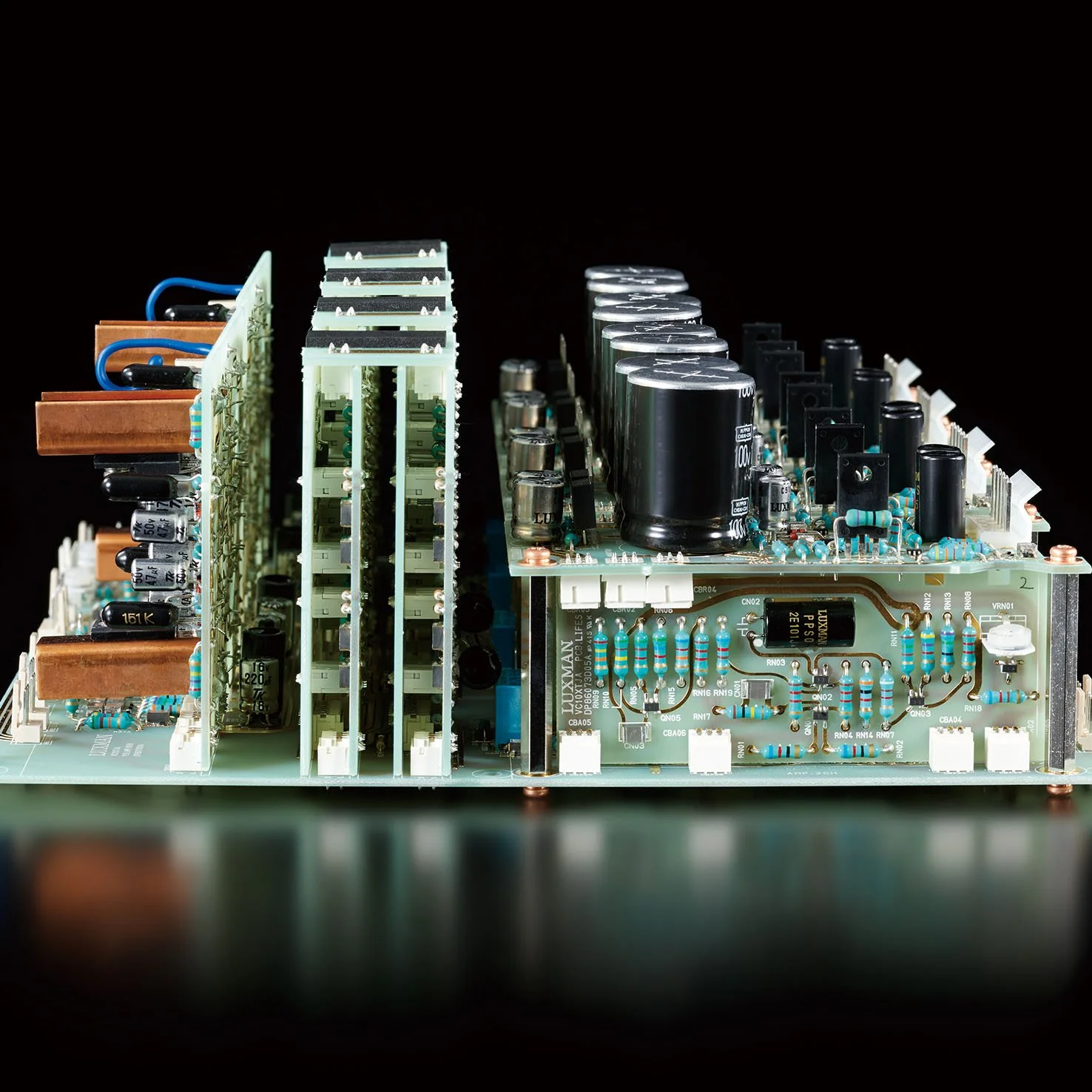

Technology
Inside a preamplifier are low-level analog signals that contain the finest nuances - the heart and soul - of your music. Preserving them on the path to the power amplifier is the primary goal of the preamplifier, and Luxman has turned to some of their best technologies to deliver on this promise:
LECUA-EX electronically controlled analog volume control
LIFES feedback system
Highly regulated power supply

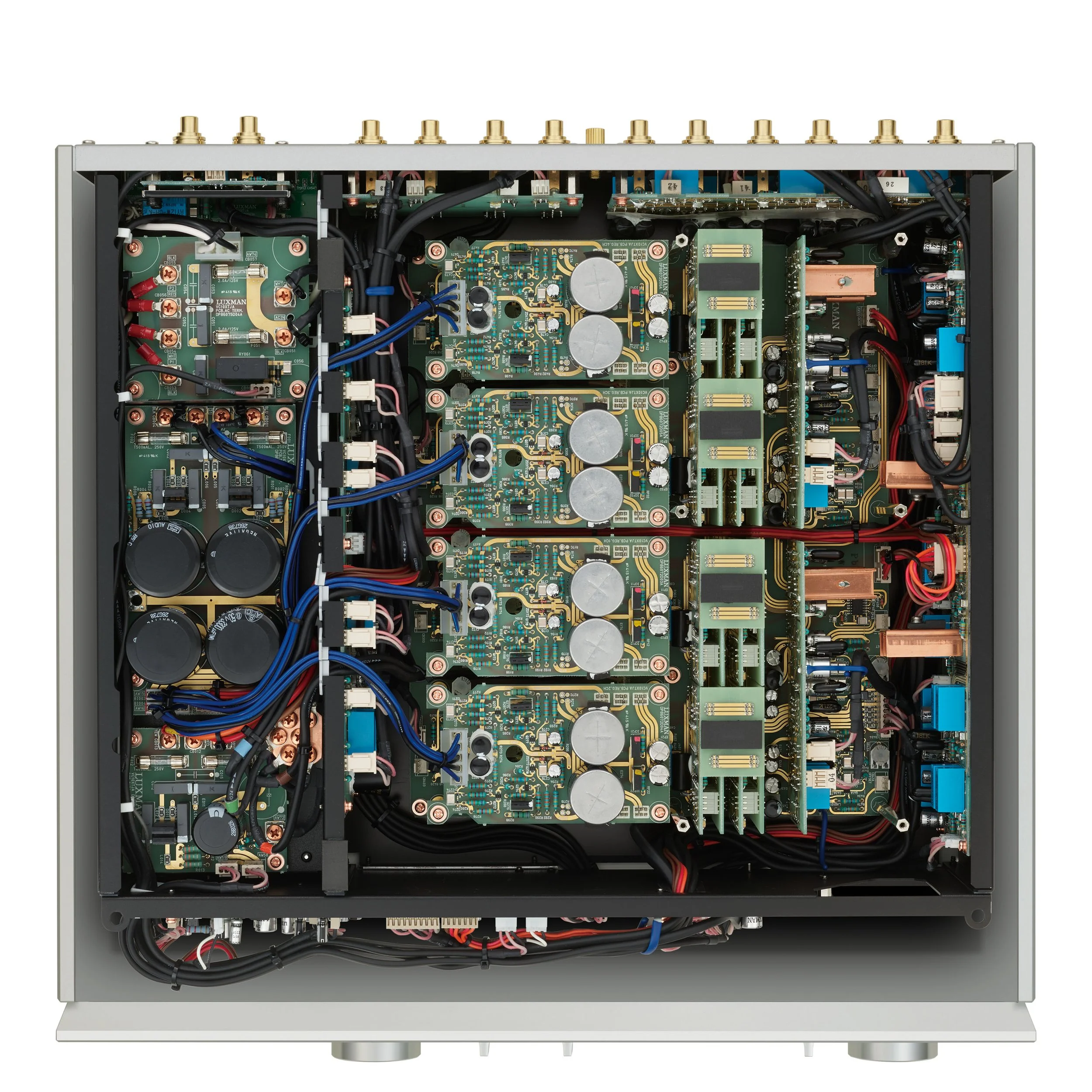

Even the layout and construction of the circuit boards has been put under the microscope. Short signal paths and non-angled traces are designed to make signal transmission as smooth as possible.

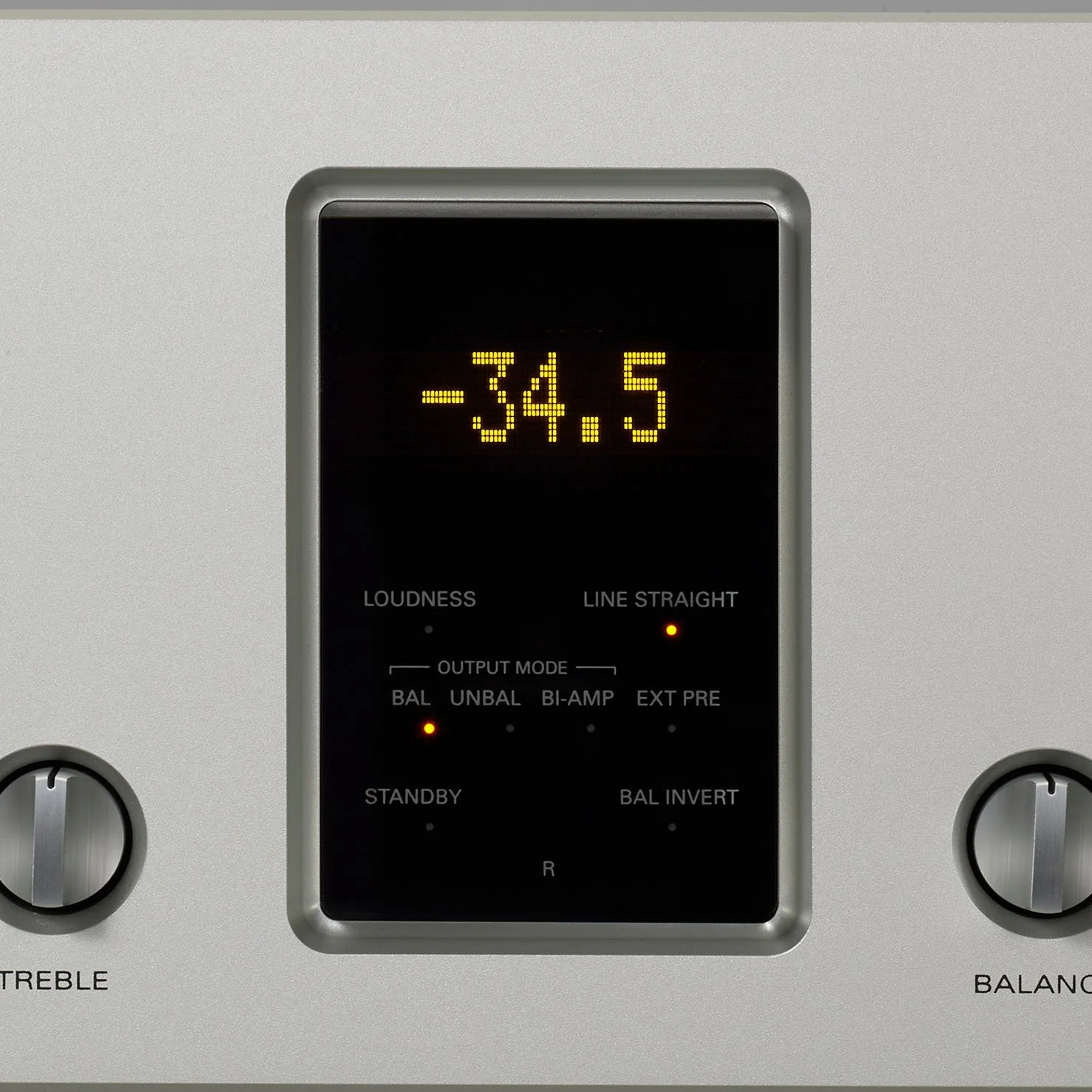

Function

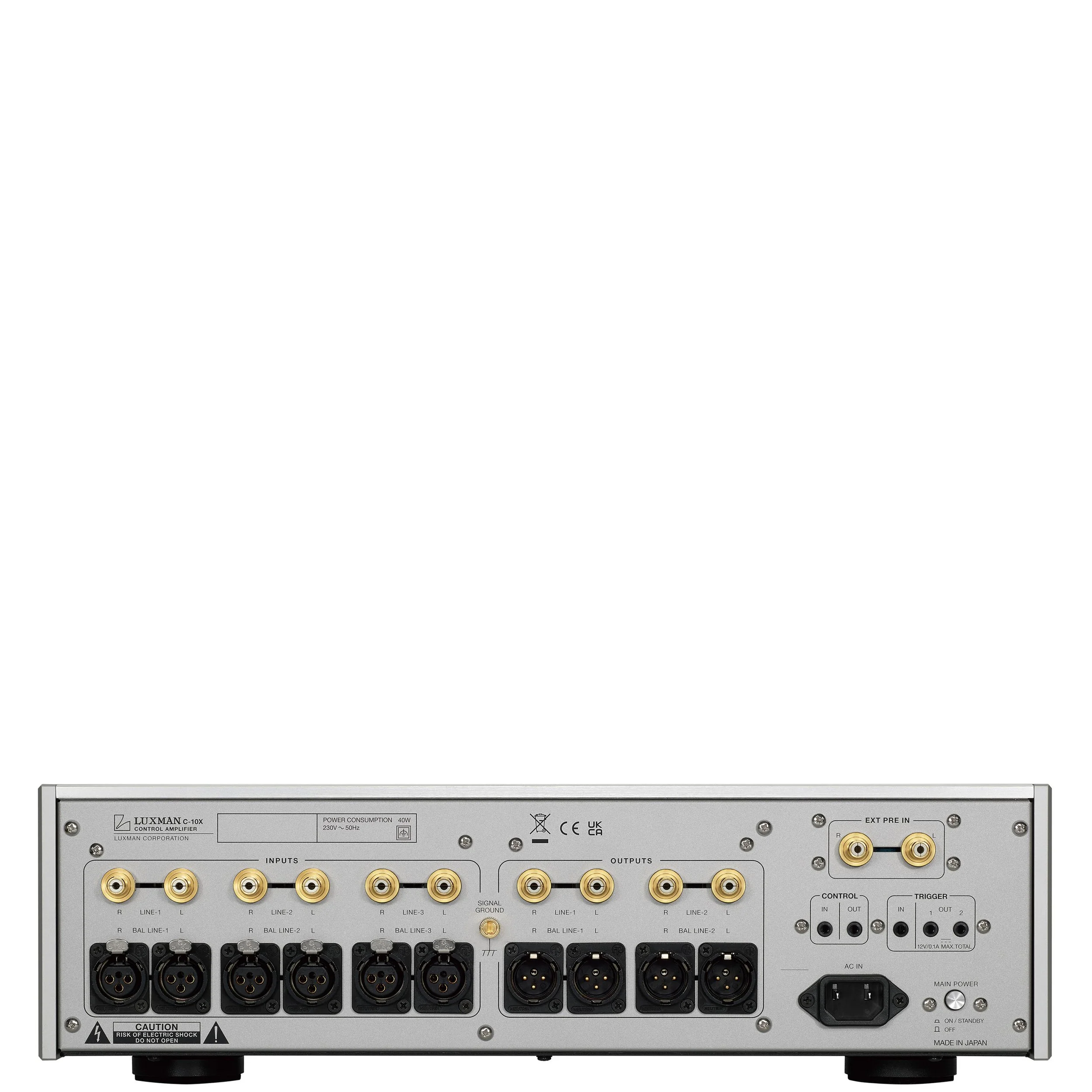

An analog-only preamplifier, the Luxman C-10X includes the following inputs:
3 RCA line level
3 XLR (balanced) line level
Connect it to a power amplifier with either of its single-ended (RCA) or balanced (XLR) outputs.
Creative Audio Pro Tips
The Luxman C-10X will sound great right out of the box, but will sound even better after 200 hours of use.
Always keep the top of the preamplifier clear to allow for adequate ventilation (we recommend a minimum of 2-3 inches). Do not place the unit in a closed cabinet.
We always recommend quality interconnect cables both from your source(s) as well as to your power amplifier.
Luxman C-10X Technical Specifications
(reprinted from Luxman)
Input sensitivity/Input impedance:
Unbalanced 180mV/45kΩ
Balanced 180mV/90kΩ
Output/Input impedance:
Unbalanced rating 1V/90Ω, max. 14.1V
Balanced rating 1V/180Ω, max. 28.7V
Frequency response:
20Hz to 20kHz (+0, within -0.1dB)
5Hz to 110kHz (+0, within -3.0dB)
Total harmonic distortion:
Unbalanced 0.005% (20Hz to 20kHz)
Balanced 0.003% (20Hz to 20kHz)
S/N ratio (IHF-A):
Unbalanced 129dB
Balanced 132dB
Volume control:
LECUA-EX
Amplification feedback circuit:
LIFES 1.0
Max. change amount of tone control:
BASS: ±8dB at 100Hz
TREBLE: ±8dB at 10kHz
Power consumption:
40W, 2.6W (at standby)
Dimensions (WxHxD):
17.3” x 5.1” x 17.1”
(front knobs and rear terminals included in depth)
Net weight:
43.7 pounds
Accessories:
Remote control (RA-20), Power cable
