Advantages of this Power Amplifier

• 5 channels of Marantz power to deliver greater impact and clarity in your home theater system.

• Massive power supply design ensures power delivery when required for a dynamic movie experience.

• Offers both RCA and XLR connections.

Image Gallery

In Greater Detail

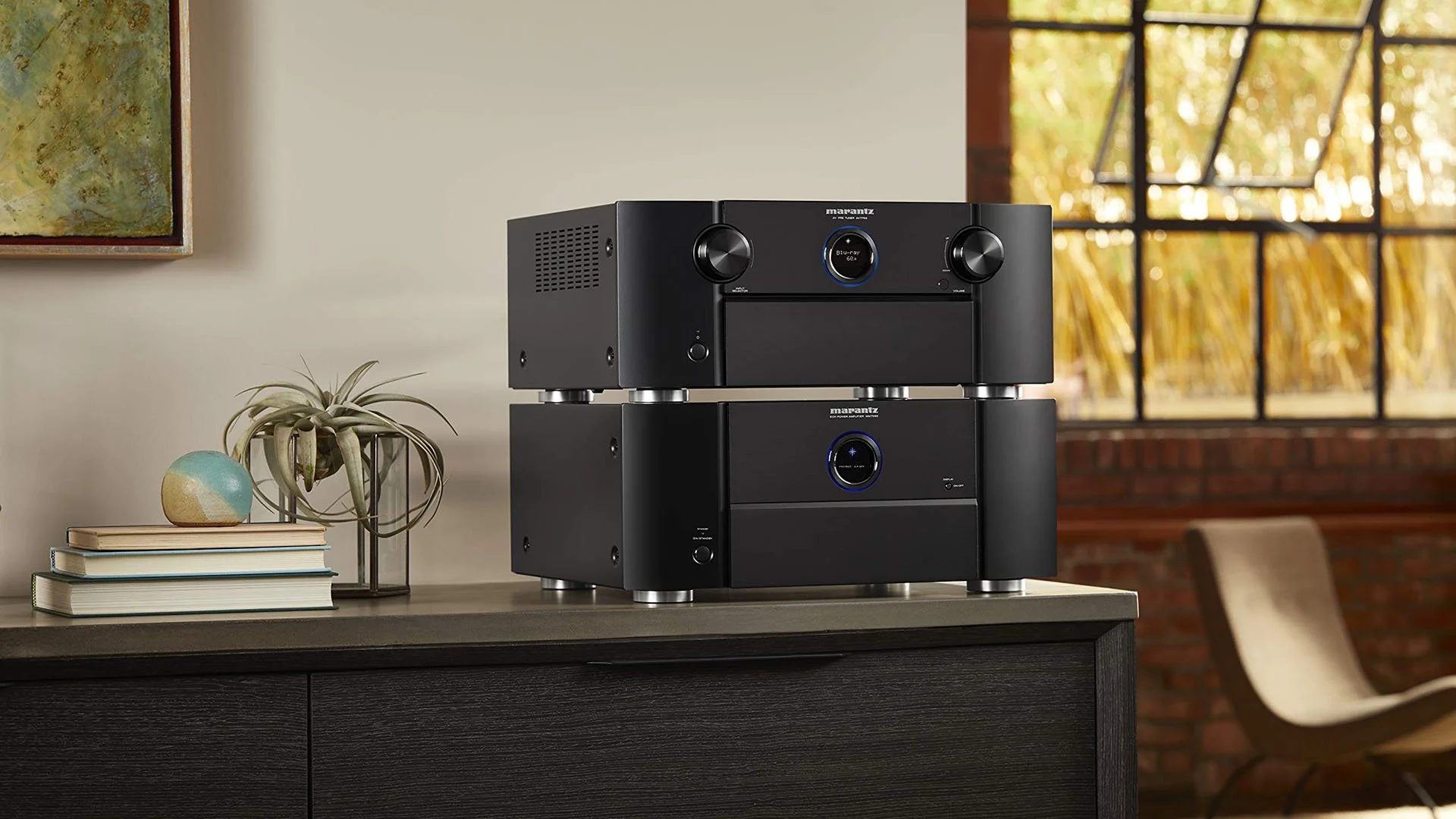

The Marantz MM7055 power amplifier, available in Winnipeg from Creative Audio, produces 140 watts of high current output from each of its five channels. This is “real world” power, too, measured across the full audio bandwidth (20 Hz – 20 kHz) at 8 ohms with 0.08% Total Harmonic Distortion. Among other attributes, this means the Marantz MM7055 is capable of long-term power delivery into low impedance speakers.

In practical terms, the Marantz MM7055 is ideal for a 5.1 home theater system, whether based on a moderately powered receiver or a surround sound processor. You can use it to power speakers in different areas of your home; stereo reproduction in two rooms plus a mono channel for secondary areas such as a den or kitchen. For more complex home theater systems, the Marantz MM7055 pairs with one or several Marantz MM7025s to help create a totally immersive 7.1 or 9.1 audio experience.

A massive power supply includes a multiple-secondary EI-core transformer and over 65,000 µF of custom-designed energy storage capacity. Critical circuit components from many world-class suppliers were chosen only after extensive listening tests. Among these, the LAPT Hyper Power output devices were first used in Reference Series components. Current feedback topology insures astounding accuracy and control under high-drive conditions.

Physically, the Marantz MM7055’s output stages mount on an extruded aluminum “thermal tunnel” for efficient heat dissipation. With temperature-sensing forced air cooling, this configuration assures cool operating temperatures for long-term reliability, even when making full use of the amplifier’s substantial output capabilities.

Balanced inputs and single-ended RCA inputs are both supported, and you can choose either type of input for each channel, individually, for easy and flexible connectivity. Audiophile grade, gold-plated four-way binding post speaker terminals insure tight connections to your choice of speaker wire.

Marantz MM7055 Technical Specifications

Dimensions:
17.3” x 15.1” x 7.3” (WxDxH)

Power Output:
140 watts x 5
